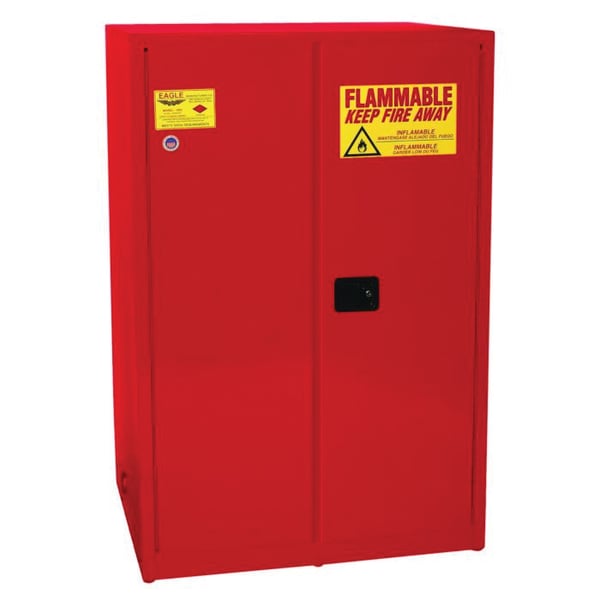

Eagle Manufacturing 9010XRED Standard Flammable Liquid Safety Cabinet, 90 gal Capacity, Recessed Paddle Handle, 65 in H x 43 in W x 34 in D, Self-Close Door, 2 Doors, 2 Shelves, Steel, Red


Description

Eagle Manufacturing Flammable Liquid Safety Cabinet, Standard, 90 gal Capacity, 65 in Height, 43 in Width, 34 in Depth, Self-Close Door, 2 Doors, 2 Shelves, Steel, High Gloss/Baked Powder Coated, Red, Recessed Paddle Handle

90 gal, self-closing, flammable liquid safety cabinet is constructed of 18 ga steel. The sides, top, bottom and doors are double-walled with a 1-1/2 in air space between walls. Includes two vents, each have 2 in threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system and 2 in raised, leak-proof door sill. Each shelf is adjustable on 3 in centers, supported by four brackets, with a 350 lb safe allowable load. Cabinets are FM approved and meet NFPA Code 30 and OSHA requirements.

Specifications

Capacity 90 gal
Color Red
Depth 34 in
Door Type Self-Close
Finish High Gloss/Baked Powder Coated
Handle Type Recessed Paddle
Height 65 in
Material Steel
Number of Doors 2
Number of Shelves 2
Type Standard
Width 43 in

Warranty: 10 years Limited

Country of Origin: United States

Standards and Approvals: FM Approved, International Fire Code(IFC), NFPA 30/1, OSHA Compliant, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Features

  • Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
  • Continuous piano hinges
  • Ground connection
  • Four adjustable galvanized leveling legs
  • Trilingual warning labels
  • 2 in (5.1 cm) raised leakproof sill
  • Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lb (158.8 kg) Uniform Distributed Load (UDL)
  • Internal and external welded construction
  • Two 2 in (5.1 cm) internal vents with fire baffle and cap
  • Flush mounted door handle with key lock
  • 3-point stainless steel bullet latching system provides failsafe, positive door closure with increased heat and corrosion resistance
  • 3 in (7.6 cm) centers for shelf brackets
  • Self-latching doors
  • 135 deg opening self-closing door
  • Concealed self-close mechanism provides obstruction-free access to top shelf space
  • Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom
