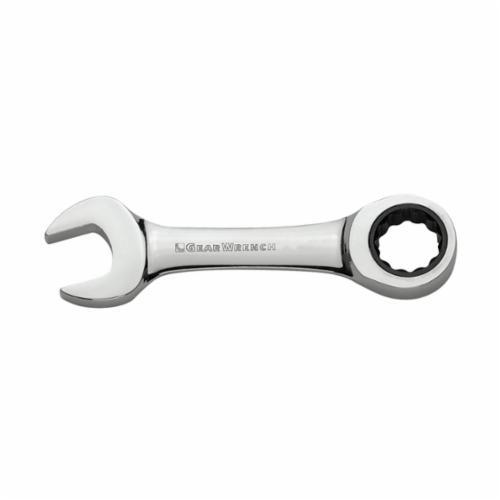

GEARWRENCH® 9519D Open End Stubby Length Combination Wrench, 19 mm Wrench, 12 Points, 0 or 15 deg Offset, 5.433 in OAL, Polished Chrome


Description

GEARWRENCH® Combination Wrench, Open End Stubby Length, Measurement System: Metric, Ratcheting Wrench, 19 mm Wrench Opening, 12 Points, 72 Geared Teeth, 5.433 in Overall Length, 0 or 15 deg Offset, 1.626 in Open End Width, 0.374 in Open End Thickness, 1.339 in Box End Width, 0.441 in Box End Thickness, 15 deg Head, Polished Chrome

The GEARWRENCH combination ratcheting wrenches feature a 5 degree ratcheting arc vs. 30 degree on a standard combination wrench increasing productivity. The wrenches feature off-corner loading for better grip and reduced fastener rounding. The wrenches have a sleek head design allowing access to tight spots where a ratchet would not fit.

Specifications

Box End Thickness 0.441 in
Box End Width 1.339 in
Finish/Coating Polished Chrome
Head Angle 15 deg
Measurement System Metric
Number of Geared Teeth 72
Number of Points 12
Offset Angle 0 or 15 deg
Open End Thickness 0.374 in
Open End Width 1.626 in
Overall Length 5.433 in
Type Open End Stubby Length
Wrench Opening 19 mm
Wrench Type Ratcheting

Warranty: Limited Lifetime

Country of Origin: China

Standards and Approvals: ANSI Specified, DIN Approved, Federal Torque Specified, CSA Approved

Features

  • Off-corner loading design on box end provides better grip and reduces fastener rounding
  • Thin head and beam provide greater access in confined work areas
  • Manufactured from alloy steel for better strength and longer tool life
  • Bright, full polish chrome finish easily wipes clean and resists corrosion
  • 72-tooth ratcheting box end needs a minimal 5 deg to move fasteners versus 30 deg for standard wrenches
