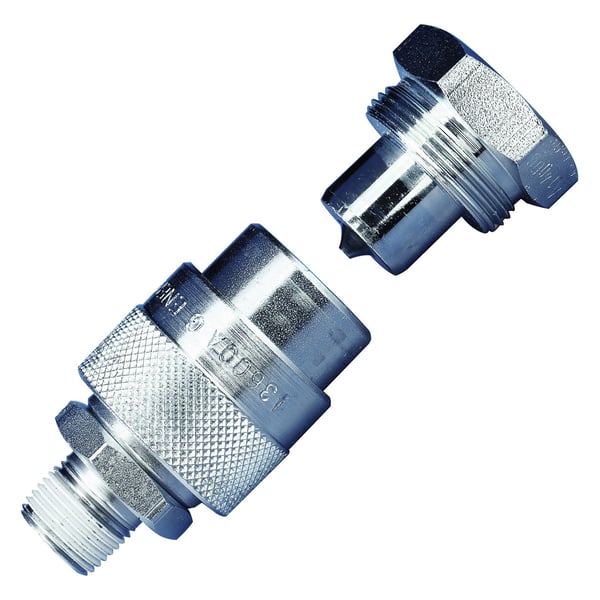

Enerpac® C-604 C Series High Flow Quick-Connect Hydraulic Coupler, 3/8 in Nominal, MNPT, Steel, Domestic


Description

Enerpac® Hydraulic Coupler, High Flow Quick-Connect, Series: C Series, 3/8 in Nominal, MNPT, 1.41 in Hex, 3.26 in Length, 10000 psi, Steel, Domestic

Specifications

Domestic/Import Domestic
End Style MNPT
Hex Size 1.41 in
Length 3.26 in
Material Steel
Nominal Size 3/8 in
Pressure Rating 10000 psi
Series C Series
Type High Flow Quick-Connect

Includes: (2x) CD-411 Male Dust Cap

Country of Origin: United States

Application:
Industrial and Commercial

Features

  • 3/8 in high flow coupler set
  • For use on all enerpac pumps and cylinders where space and porting permits
  • To seal NPTF threads use one of the new anaerobic thread sealers or Teflon tapes; apply the tape one thread back from the end of a fitting to prevent it from entering the hydraulic system
  • 2500 cu-in/min flow capacity
  • 17 to 40 l/min maximum oil flow
