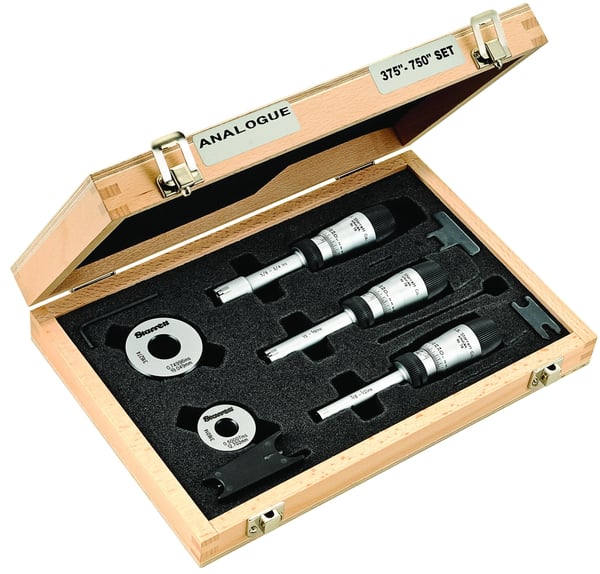

Starrett® S78XTDZ 78XT Global Series® Mechanical Bore Gage Set, 3/8 to 3/4 in, Graduations: 0.00025 in, 2-1/4 to 2-5/8 in D Probe, Tungsten Carbide


Description

Starrett® Bore Gage Set, Mechanical, Series: 78XT Global Series®, 3/8 to 3/4 in, 0.00015 in Accuracy, Graduations: 0.00025 in, 0.0002 in Resolution, 2-1/4 to 2-5/8 in Probe Depth, Tungsten Carbide

The Starrett 78XT Series Internal Micrometer features extended travel, reducing the need to exchange anvils. The ground contact point seats the internal micrometer faster and more accurately than the spherical contacts found in other gages. The rugged and accurate internal micrometer is available individually or in economical sets from .040-12" (1-300mm). SET, 3/8-3/4" Range, w/3 Point Carbide Contact.

Specifications

Accuracy 0.00015 in
Graduations 0.00025 in
Material Tungsten Carbide
Measuring Range 3/8 to 3/4 in
Probe Depth 2-1/4 to 2-5/8 in
Resolution 0.0002 in
Series 78XT Global Series®
Type Mechanical

Includes: Case, Contacts, Instructions, Setting Ring and Wrenches

Country of Origin: United Kingdom

Features

  • Wide measurement range without changing anvils
  • Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5mm)
  • Ratchet stop ensures consistent measurements
  • Self-centering contacts for true readings
  • Depth stop/collar also available for .080 in-.250 in (1-6mm) range
