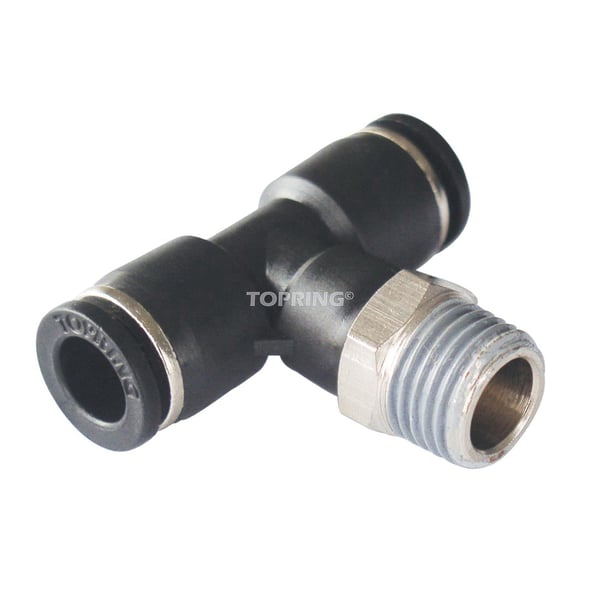

TOPRING 44.395 MAXFIT® S44 Swivel Branch Tee, 3/8 in Nominal, Push-to-Connect x MNPT, 150 psi Pressure, Polymer, Import


Description

TOPRING Swivel Branch Tee, Series: MAXFIT® S44, 3/8 in Nominal, Push-to-Connect x MNPT, 150 psi, 5 to 60 deg C, Polymer, Import

Specifications

Domestic/Import Import
End Style Push-to-Connect x MNPT
Material Polymer
Nominal Size 3/8 in
Pressure Rating 150 psi
Series MAXFIT® S44
Temperature Rating 5 to 60 deg C

Country of Origin: China

Application:
Compressed Air and Vacuum

Features

  • Quick connect design - 1-piece fitting saves over 75% of assembly time compared to standard compression fittings
  • Compact design - Allows fittings to be closely mounted
  • Optimum flow - No part of the fitting goes inside the tubing unrestricted tubing ID allows for maximum airflow
  • Quick and easy connection - Wide release collar allows fast and trouble-free tubing removal
  • Instantaneous connection/disconnection - Designed for fast assembly, disassembly and reassembly without tools
  • Fully reusable - Designed to resist multiple connections and disconnections with leak-free operations and solid tubing gripping
  • Tubing size identification - Tubing diameter indicated on release collar
  • Corrosion-resistant threaded fittings - All threaded fittings are made of nickel plated brass
