Gates® Power Transmission Poly Chain® GT® Carbon™ 8MGT-608-21 Short Length Synchronous Belt, 21 mm W, 608 mm OAL, 8 mm Pitch, 76 Teeth, Polyurethane


Description

Gates® Power Transmission Poly Chain® GT® Carbon™ Synchronous Belt, Short Length, Series: 9270, 76 Teeth, 8 mm Pitch, 608 mm Overall Length, 21 mm Width, -65 to 185 deg F, Curvilinear Tooth Profile, Polyurethane, Carbon Reinforced Material

Poly Chain® GT® Carbon™ belts nothing tougher. The new Poly Chain® GT® Carbon™ belt construction utilizes a polyurethane body combined with carbon fiber tensile cords for increased capacity and performance.

Specifications

Material Polyurethane
Number of Teeth 76
Overall Length 608 mm
Pitch 8 mm
Reinforced Material Carbon
Series 9270
Temperature Range -65 to 185 deg F
Tooth Profile Curvilinear
Type Short Length
Width 21 mm

Country of Origin: United States

Standards and Approvals: RMA Standard

Application:
For replacing roller chain and roll-to-roll conveyors

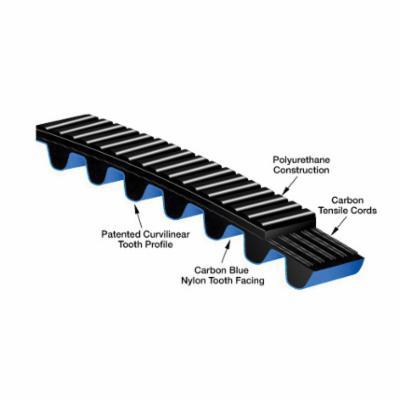

Features

  • Durable polyurethane construction resists chemicals, oil, pollutants and abrasion
  • Nylon tooth facing reduces friction and eliminates the need for lubrication
  • Gates® patented tooth profile provides high shear strength, noise reduction and improved load carrying capacity
  • Robust carbon tensile cord combines minimal stretch with extraordinary strength and load carrying capacity, while absorbing shock and surge loads
