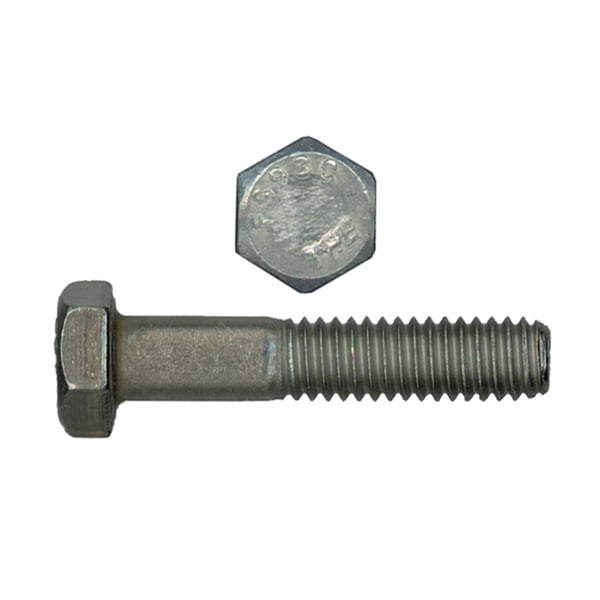

Paulin® B5000-721EA Hex Head Cap Screw, 3/4-10, 3 in L Under Head, 18-8 Grade, Stainless Steel


Description

Paulin® Hex Head Cap Screw, Series: B5000, Measurement System: Imperial, 3/4-10 Thread, 3 in Length Under Head, 18-8 Grade, Stainless Steel, UNC Thread, Hex Head, 80000 to 150000 psi Tensile Strength, Material Specification: ASME B18.2.1-1996, 1-3/4 in Minimum Thread Length, B85 to 95 Rockwell Hardness

Hex Head Cap Screws are used to secure an object within or against another object. They are recognized with specific features like tighter tolerances and a chamfered end with a washer face under the head. 18.8 stainless steel material has excellent corrosion resistant qualities and is an excellent choice for general use and outdoor applications.

Specifications

Diameter - Thread Size 3/4-10
Grade 18-8
Hardness B85 to 95 Rockwell
Head Type Hex
Length Under Head 3 in
Material Stainless Steel
Material Specification ASME B18.2.1-1996
Measurement System Imperial
Minimum Thread Length 1-3/4 in
Series B5000
Tensile Strength 80000 to 150000 psi
Thread Type UNC

Features

  • Most commonly used for non-magnetic stainless fasteners
  • Non-magnetic, favorable corrosion resistance in comparison to other stainless alloys
  • Not hardenable with heat, higher temperatures provide greater strength
