Gates® Power Transmission PowerGrip® GT®3 267-3MGT-09 Synchronous Belt, 9 mm W, 267 mm OAL, 3 mm Pitch, 89 Teeth, Neoprene


Description

Gates® Power Transmission PowerGrip® GT®3 Synchronous Belt, Series: 9400, 89 Teeth, 3 mm Pitch, 267 mm Overall Length, 9 mm Width, Neoprene, Fiberglass Reinforced Material

The PowerGrip® GT®3 belt has twice the load carrying capacity of its predecessor HTD®. In addition, less width is required compared to HTD®, allowing lighter, more compact drives.

Specifications

Material Neoprene
Number of Teeth 89
Overall Length 267 mm
Pitch 3 mm
Reinforced Material Fiberglass
Series 9400
Width 9 mm

Country of Origin: United States

Application:
Data Storage, Machine Tool, Hand Power Tools, Postage Handling, DC Stepper/Servo, Food Processors, Office Machines, Centrifuges, Money Handling, Medical Diagnostic, Sewing Machines, Ticket Dispensers, Robotics, Vending Machines and Vacuum Cleaners

Features

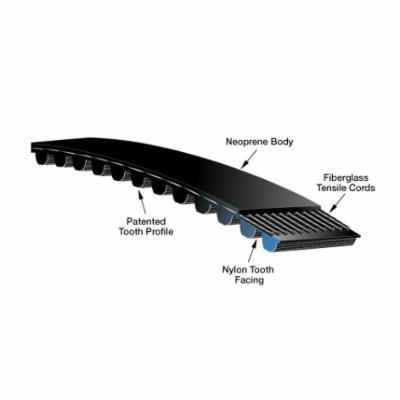

  • Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
  • Nylon tooth facing provides a durable wear surface for long service life
  • PowerGrip® GT®3 exceeds HTD® in tooth ratchet resistance
  • Gates® patented tooth profile is designed for use with a specific sprocket groove profile
  • The sprocket groove-belt tooth combinations increases capacity, while improving registration
  • Eliminates lubrication and re-tensioning to reduce maintenance and labor as compared to roller chain drives
  • Neoprene body provides protection against grime, grease, oil and moisture
  • PowerGrip® GT®3 belt and GT®2 sprocket combinations match or exceed the positional accuracy of PowerGrip® timing belt/pulley systems
