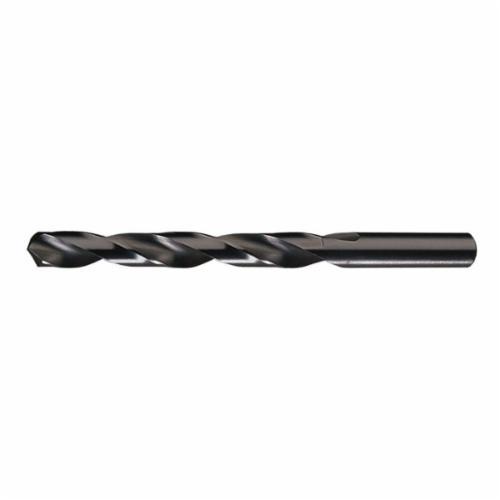

Chicago-Latrobe® 47272 150 General Purpose Jobber Length Drill Bit, 4.1 mm Drill - Metric, 0.1614 in Drill - Decimal Inch, 118 deg Point, HSS, Black Oxide


Description

Chicago-Latrobe® Jobber Length Drill Bit, General Purpose, Series: 150, Metric/Imperial, 4.1 mm Drill - Metric, 0.1614 in Drill - Decimal Inch, 75 mm Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral Flute, 43 mm Flute Length, 4.1 mm Dia x 32 mm L Shank, Straight Shank, 118 deg Point, Radial Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Black Oxide, Applicable Materials: Carbon Steel and Cast Iron

Specifications

Applicable Materials Carbon Steel and Cast Iron
Cutting Depth 5XD
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Diameter Measurement System Metric/Imperial
Drill Size - Decimal Inch 0.1614 in
Drill Size - Metric 4.1 mm
Finish Black Oxide
Flute Length 43 mm
Flute Type Right Spiral
Material HSS
Number of Flutes 2
Overall Length 75 mm
Point Angle 118 deg
Point Type Radial
Series 150
Shank Size 4.1 mm Dia x 32 mm L
Shank Type Straight
Through Coolant (Yes/No) No
Type General Purpose

Country of Origin: United States

Standards and Approvals: DIN 338

Features

  • General purpose geometry for drilling in a wide range of operating conditions and materials
