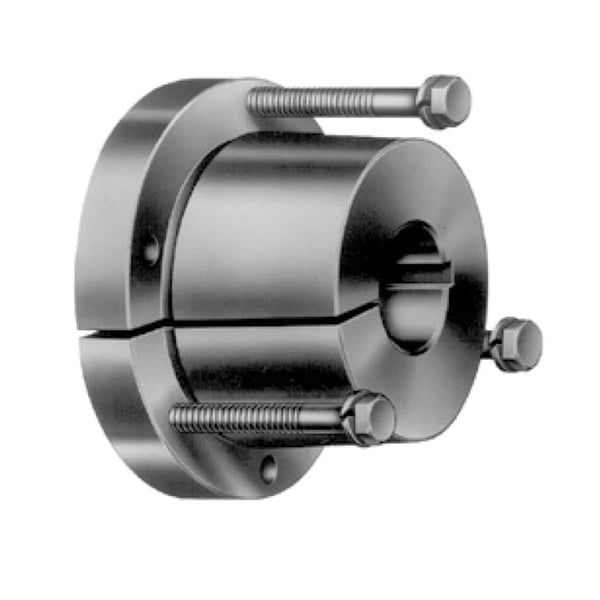

Gates® Power Transmission SH 30MM Finished Bore QD Bushing, 30 mm Dia Bore, 1.88 in Dia Barrel, 2-11/16 in Dia Flange, 1-5/16 in OAL


Description

Gates® Power Transmission QD Bushing, Finished Bore, 30 mm Bore Dia, 1.88 in Barrel Dia, 4-3/4 in (Cast Iron)/3 in (Steel) Hub Dia, 2-1/4 in Bolt Circle, 2-11/16 in Flange Dia, 0.43 in Flange Thickness, 3 Bolt Holes, 1/4-20 x 1-3/8 in Screw, 3500 in-lb, For Use With: QD Style Sheaves, Sprockets and Pulleys, 1-5/16 in Overall Length, 8 x 3.3 mm Keyway

Gates bushings are engineered with precision tolerance for use with sheaves, sprockets, pulleys, and other power transmission applications. Bushings are available in English and metric bores and come in a variety of materials including sintered steel, cast iron, steel, ductile iron, and stainless steel.

Specifications

Barrel Diameter 1.88 in
Bolt Circle Diameter 2-1/4 in
Bore Diameter 30 mm
Flange Diameter 2-11/16 in
Flange Thickness 0.43 in
Hub Diameter 4-3/4 in (Cast Iron)/3 in (Steel)
Keyway Size 8 x 3.3 mm
Number of Bolt Holes 3
Overall Length 1-5/16 in
Screw Size 1/4-20 x 1-3/8 in
Suitable For Use With QD Style Sheaves, Sprockets and Pulleys
Torque Rating 3500 in-lb
Type Finished Bore

Country of Origin: United States

Features

  • Size 7840 bushing
  • Bushings are made to precise tolerances
