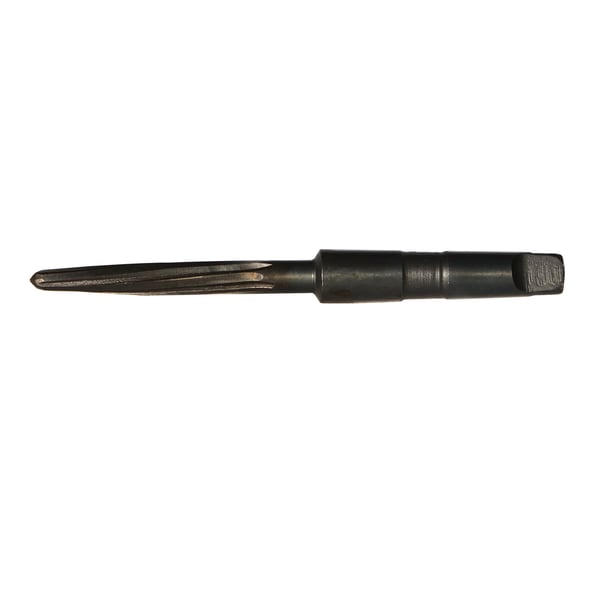

Drillco 175H118 Imperial Car Reamer, 9/32 in Dia x 5-7/16 in OAL, #1 Morse Taper Shank, Spiral Flute


Description

Drillco Car Reamer, Imperial, Series: 175H, 9/32 in Dia, 5-7/16 in Overall Length, #1 Morse Taper Shank, Spiral Flute, 2-1/2 in Flute Length, HSS, Black Oxide

Car Reamers are of similar design to Bridge Reamers except that they have shorter flutes and overall lengths. The shorter length permits their use in cramped quarters where Bridge Reamers cannot enter.

Specifications

Diameter 9/32 in
Finish Black Oxide
Flute Length 2-1/2 in
Flute Type Spiral
Material HSS
Overall Length 5-7/16 in
Series 175H
Shank Type #1 Morse Taper
Type Imperial

Country of Origin: United States

Features

  • Car reamers are of similar design to bridge reamers except that they have shorter flutes and overall lengths
  • The shorter length permits their use in cramped quarters where bridge reamers cannot enter
  • The approximate length of the tapered section is 50% of the total flute length
  • The normal tolerance on the full diameter is greater than that used for other types of machine reamers
  • Made with premium grade HSS to last longer
  • Car length for shorter or thinner workpieces
  • Spiral flutes for faster chip ejection and cutting operation
  • Tapered point for easy realignment of holes
  • Morse taper shank for use with compatible arbours
