Gates® Power Transmission PowerGrip® HTD® P17-3M-06AL Sprocket, 3/16 in Rough Stock Bore, 0.609 in OD, 17 Grooves, 0.639 in Dia Pitch, 0.28 in W Face


Description

Gates® Power Transmission PowerGrip® HTD® Sprocket, Series: 7882, Rough Stock Bore, 3/16 in Bore Dia, 0.609 in Outside Dia, 0.639 in, 17 Grooves, 3 mm Pitch, 0.28 in Face Width, 0.74 in Flange Dia, MPB Bushing, 0.562 in Overall Length, For Use With: PowerGrip® HTD® Belts, Aluminum, Clear Anodized

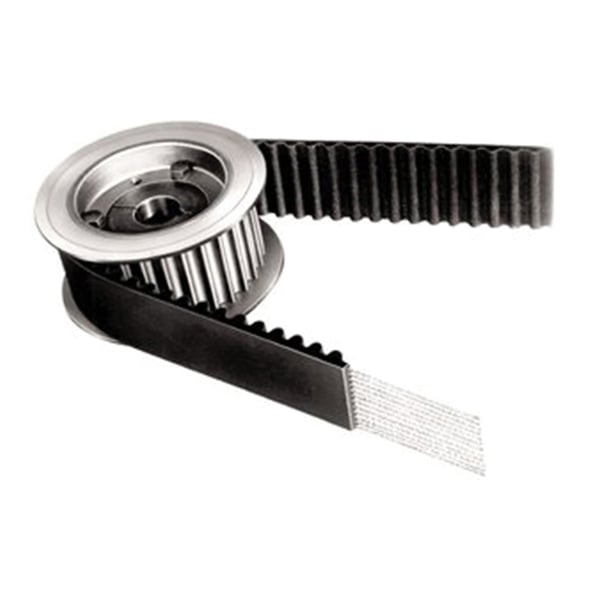

PowerGrip Sprockets and Pulleys provide optimum performance for all constructions of PowerGrip GT, PowerGrip HTD and PowerGrip Timing belts, delivering maximum performance and superior reliability. PowerGrip sprockets are precision manufactured and static balanced to eliminate sprocket wobble.

Specifications

Bore Diameter 3/16 in
Bore Type Rough Stock
Bushing Type MPB
Face Width 0.28 in
Finish Clear Anodized
Flange Diameter 0.74 in
Material Aluminum
Number of Grooves 17
Outside Diameter 0.609 in
Overall Length 0.562 in
Pitch 3 mm
Pitch Diameter 0.639 in
Series 7882
Suitable For Use With PowerGrip® HTD® Belts

Country of Origin: United States

Features

  • Full split in bushing allows easy installation and removal
  • Precise sprocket design produces positive, press fit to shaft
  • Precision manufactured and static balanced to eliminate sprocket wobble
