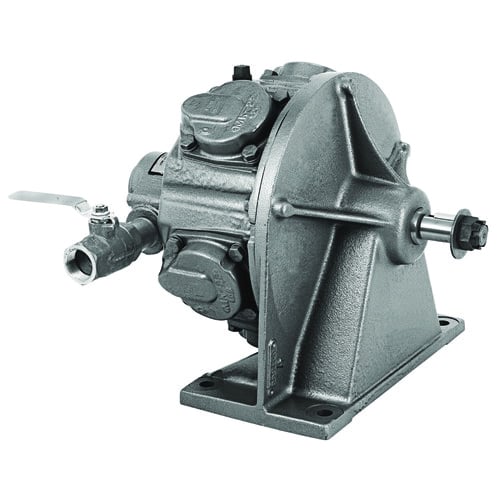

Cleco® MKW419M Radial Piston Pneumatic Air Motor, 11 hp Power Rating, 135 rpm Speed, 1654 ft-lb Torque, 288 scfm Air Flow


Description

Cleco® Pneumatic Air Motor, Radial Piston, Series: MK Series, 11 hp, 135 rpm, 288 scfm, 14.2:1 Gear Ratio, Left Hand/Right Hand, 1654 ft-lb, Footed Mount, 200 deg F, 90 psi, 20.88 in L

Heavy duty construction make these motors suitable for continuous operation. The counterbalanced crankshaft is supported by anti-friction bearings. A slinger distributes oil to all moving parts of the motor. Oil level and drain plugs are easily accessible. High torque is an inherent characteristic of piston type air motors, making them especially desirable for applications involving heavy starting loads. The overlap of power impulses in radial piston air motors provides even torque and full power in either direction of rotation. At least two pistons are always on a power stroke. These motors should be operated under load and in a horizontal position. It is not recommended that they be operated at speeds greater than 75% of free speed. These motors perform satisfactorily in high temperature areas up to 200 deg F(93 deg C). It is recommended that air lines be equipped with lubricators. Mount the lubricator as close to the motor as possible.

Specifications

Air Flow Rate 288 scfm
Dimensions 20.88 in L
Gear Ratio 14.2:1
Mounting Type Footed
Power Rating 11 hp
Pressure Rating 90 psi
Rotation Left Hand/Right Hand
Series MK Series
Speed 135 rpm
Temperature Rating 200 deg F
Torque Rating 1654 ft-lb
Type Radial Piston

Country of Origin: United States

Features

  • Maximum Power 11 hp
  • 8.20 kw
  • Torque Range 117 - 1654 ft lbs
  • Threaded Spindle
