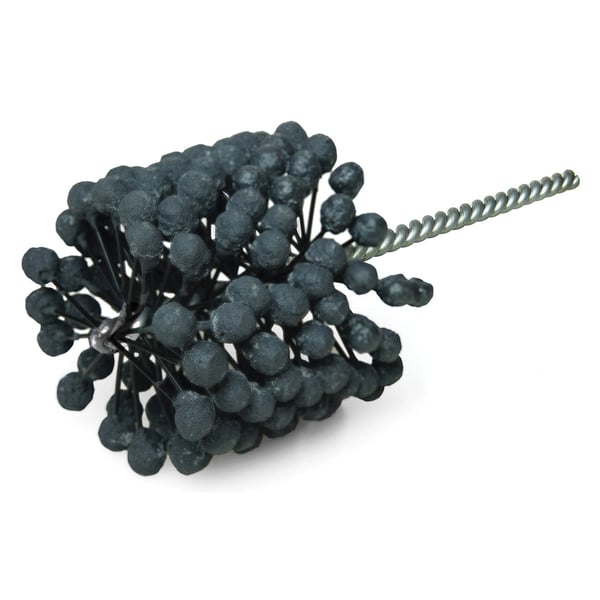

Weiler® CrossFlex™ 34267 Flexible Cylinder Heavy Duty Medium Diameter Honing Brush, 3-1/2 in Dia Bore, 5-1/2 in L Abrasive, 13-1/2 in OAL, 180 Grit, Medium Grade


Description

Weiler® CrossFlex™ Honing Brush, Flexible Cylinder Heavy Duty Medium Diameter, 3-1/2 in Bore Dia, 5-1/2 in Abrasive Length, 13-1/2 in Overall Length, 180 Grit, Medium Grade, 700 rpm Maximum, Silicon Carbide Abrasive, Applicable Materials: Steel

CrossFlex™ offers machinists the right combination of performance and value for professional honing applications. Flexible filaments provide the correct pressure to create an ideal hone; one bore after another. It's the ideal tool to create cross-hatch patterns for improved oil retention and increased part efficiency. The strong self-centering system leaves a smooth, even surface finish free of metal burrs whether used in a manual or automated application.

Specifications

Abrasive Length 5-1/2 in
Abrasive Material Silicon Carbide
Applicable Materials Steel
Bore Diameter 3-1/2 in
Grade Medium
Grit 180
Maximum Speed 700 rpm
Overall Length 13-1/2 in
Type Flexible Cylinder Heavy Duty Medium Diameter

Country of Origin: China

Standards and Approvals: PROP65: This product can expose you to chemicals including Silica, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

Application:
For changing the surface finish in machined bores and deburring the ID of castings and automotive applications

Features

  • Heavy Burr Removal - Increased brush to part contact ensures that the heaviest burrs will be removed, outperforming standard nylon tube brushes
  • Long Life - CrossFlex brushes have a long operational life, lowering total cost of use compared to other brush options
  • Flexible Nylon Stems - Distribute pressure evenly and self centers within the part to create an ideal hone
  • Consistent Cross Hatch Pattern - Helps to seat piston rings and retains oil for lubrication in a combustion cylinder
