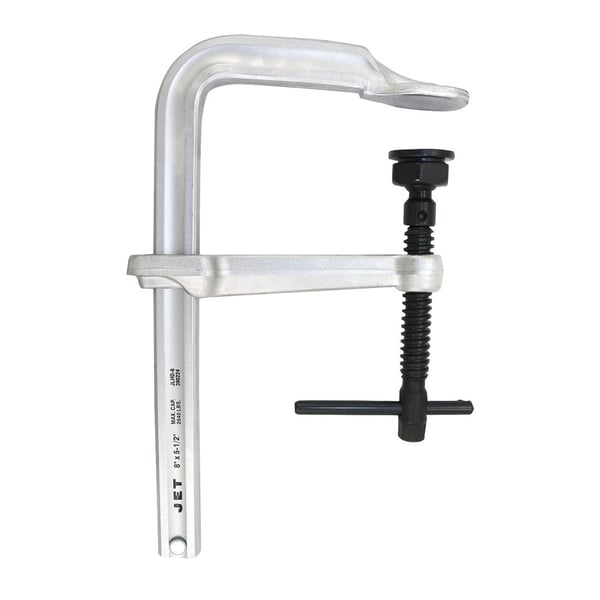

JET 390228 Deep Throat Heavy Duty L-Clamp, 5-1/2 in D Throat, 12 in Jaw Opening
JET 390228 Deep Throat Heavy Duty L-Clamp, 5-1/2 in D Throat, 12 in Jaw Opening
SKU: ZOF855
Manufacturer Part Number: 390228
UPC: 059629822197
Brand: JET
Description
Specifications
| Clamping Pressure | 2640 lb |
| Finish | Polished Nickel/Polished Chrome |
| Handle Material | Steel |
| Jaw Opening | 12 in |
| Nominal Rail Size | 1-3/16 x 9/16 in |
| Spindle Type | ACME Threaded |
| Throat Depth | 5-1/2 in |
| Type | Deep Throat Heavy Duty |
Country of Origin: China
Features
- Made with increased throat depth and heavy-duty cold-forged swivel pads for maximum versatility
- Heavy-duty replaceable pads tilt up to 35 deg for better alignment to work piece
- Rails, sliding arms, and spindles are heat treated for maximum strength
- High carbon Acme threaded spindle is spatter resistant
- Nickel-chrome plated rails are heat formed from cold drawn profiled steel
- Hidden spring applies tension to pad for easier set-up (models 390524 thru 390533)
- Hex bolster on spindle end allows use of wrench or socket for increased clamping force (models 390524 thru 390533)
- Replacement spindle and pads readily available
