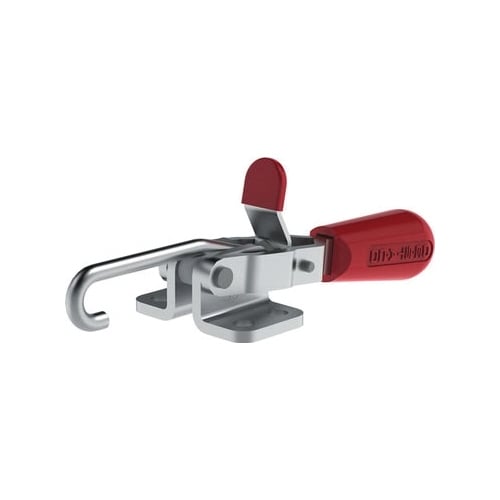

DESTACO 330-SS-M-50 Pull Action Standard Latch Clamp With 50 mm Longer Hook, Stainless Steel, 200 lb, 0.56 in, M5


Description

DESTACO Latch Clamp, Pull Action Standard, Series: 330 Series, 200 lb Holding, 0.56 in Height Under Arm, 1.43 in Overall Height, 6.01 in Overall Length, M5 Thread, Straight Handle, Horizontal J-Hook Bar, Flanged Base, 0.5 x 1.22 in Mounting Centers, Stainless Steel

Specifications

Bar Type Horizontal J-Hook
Base Type Flanged
Handle Type Straight
Height Under Arm 0.56 in
Holding Capacity 200 lb
Material Stainless Steel
Mounting Centers 0.5 x 1.22 in
Overall Height 1.43 in
Overall Length 6.01 in
Series 330 Series
Thread Size M5
Type Pull Action Standard

Country of Origin: United States

Application:
Molding, Closures for Doors, Lids, Covers and Assembly

Features

  • The smallest in our line of pull action latch clamps
  • The pull bar is threaded for easy adjustment
  • Supplied with threaded J-hook for easy adjustment
  • Patented thumb control lever provides one handed operation
