Gates® Power Transmission Poly Chain® HTD® PC1610-14M-170 Synchronous Belt, 170 mm W, 1610 mm OAL, 14 mm Pitch, 115 Teeth, Polyurethane


Description

Gates® Power Transmission Poly Chain® HTD® Synchronous Belt, Series: 9258, 115 Teeth, 14 mm Pitch, 1610 mm Overall Length, 170 mm Width, -65 to 180 deg F, Curved Tooth Profile, Polyurethane, Aramid Reinforced Material

Gates original HTD® tooth profile combined with Poly Chain® belt construction.

Specifications

Material Polyurethane
Number of Teeth 115
Overall Length 1610 mm
Pitch 14 mm
Reinforced Material Aramid
Series 9258
Temperature Range -65 to 180 deg F
Tooth Profile Curved
Width 170 mm

Country of Origin: United States

Standards and Approvals: RMA Standard

Application:
For replacement of HTD® belts in HTD® sprockets

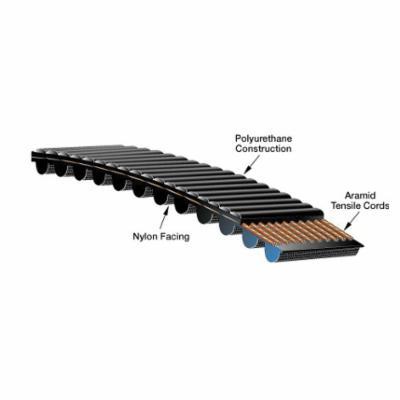

Features

  • The durable polyurethane body resists chemicals, oil, pollutants and abrasion
  • Robust aramid tensile cords combines minimal stretch with extraordinary strength
  • Nylon tooth facing provides a durable wear surface for long service life
  • Gates® original HTD® tooth profile combined with Poly Chain® belt construction
