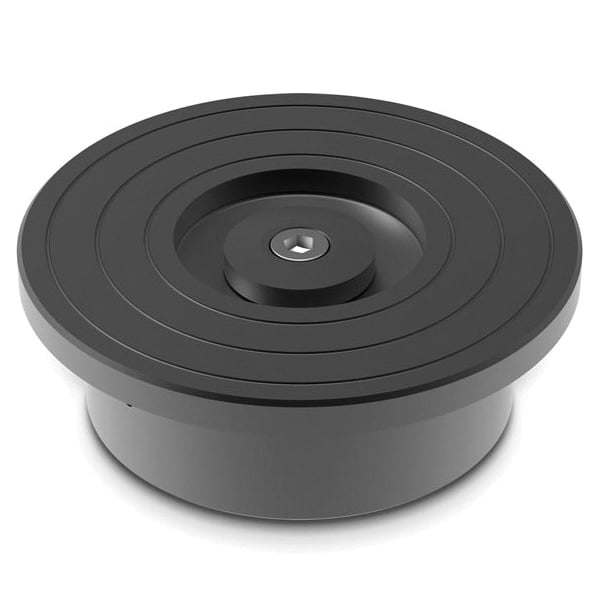

Enerpac® CATS500 5 deg Tilt Saddle


Description

Enerpac® Saddle, 5 deg Tilt, Series: CATS Series, For Use With: HCL5002/HCL5004/HCL5006/HCL5008/HCL50010/HCL50012 HCL Series Lock Nut, HCG5002/HCG5004/HCG5006/HCG50010/HCG50012 HCG Series and HCR5002/HCR5004/HCR5006/HCR5008/HCR50010/HCR50012 HCR Series 500 ton Single/Double Acting High Tonnage Cylinders, 9.06 in Dia

The use of a tilt saddle can extend the life of an Enerpac® cylinder. Hydraulic cylinders are built to ensure efficient and safe use time after time, but even the toughest cylinders can be damaged by an excessive side load. Side loading can occur even when the load is vertically placed on top of the cylinder, when cylinders are extended too far (especially long stroke cylinders) or when the saddle on the end of the plunger fails to make sufficient contact with the load. Greater contact can be achieved using Enerpac® tilt saddles.

Specifications

Dimensions 9.06 in Dia
Series CATS Series
Suitable For Use With HCL5002/HCL5004/HCL5006/HCL5008/HCL50010/HCL50012 HCL Series Lock Nut, HCG5002/HCG5004/HCG5006/HCG50010/HCG50012 HCG Series and HCR5002/HCR5004/HCR5006/HCR5008/HCR50010/HCR50012 HCR Series 500 ton Single/Double Acting High Tonnage Cylinders
Type 5 deg Tilt

Warranty: Limited

Standards and Approvals: ETC Certified

Features

  • With safety and convenience in mind the new tilt saddles are designed to allow bolting to the cylinder - which means they can be used safely in any orientation without the risk of the saddle dropping-off
  • CATS - tilt saddles use a nitro carburization surface treatment for improved corrosion protection, helping to maintain a professional look through their usage life
