Starrett® 770BXTZ-200 770BXT Global Series® Electronic Internal Micrometer, 0.16 to 0.2 in Measuring, LCD Display, Carbide Tip


Description

Starrett® Internal Micrometer, Electronic, Series: 770BXT Global Series®, 0.16 to 0.2 in Measuring, 0.00015 in Accuracy, 0.00005 in Resolution, Fixed Anvil, LCD Display, Battery Power Source, Carbide Tip

The Starrett 770BXT Series Electronic Internal Micrometer, with built-in Blue tooth technology, provides IP67 level of protection against coolant, water, dirt and dust in hostile shop environments. In addition, it offers extended travel, reducing the need to exchange anvils. The ground contact points seat the internal micrometer faster and more accurately than the spherical contacts found on other gages. The rugged and accurate internal micrometer is available individually or in sets from .080" (2mm) to 12" (300mm). .160-.200" (4-5mm) Range, 2-Point Contact (300mm).

Specifications

Accuracy 0.00015 in
Anvil Type Fixed
Display Type LCD
Material Carbide Tip
Measuring Range 0.16 to 0.2 in
Power Source Battery
Resolution 0.00005 in
Series 770BXT Global Series®
Type Electronic

Country of Origin: United Kingdom

Features

  • Wide measurement range without changing anvils
  • Carbide measuring faces on sizes above 1/2 in (12.5mm) diameter
  • Extensions available for deep holes
  • Precision ratchet stop provides correct contact pressure for accurate readings

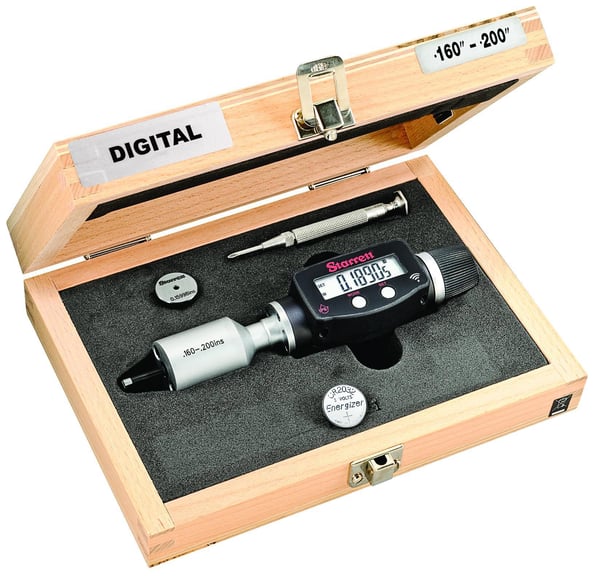

  • Each micrometer bore gage with head comes with a wooden case, complete with setting ring, contacts, adjusting wrench, spare battery, and instructions
  • Large high-contrast LCD digital readout is easy to read and reduces error
  • Proximity output with optional built-in Wireless
