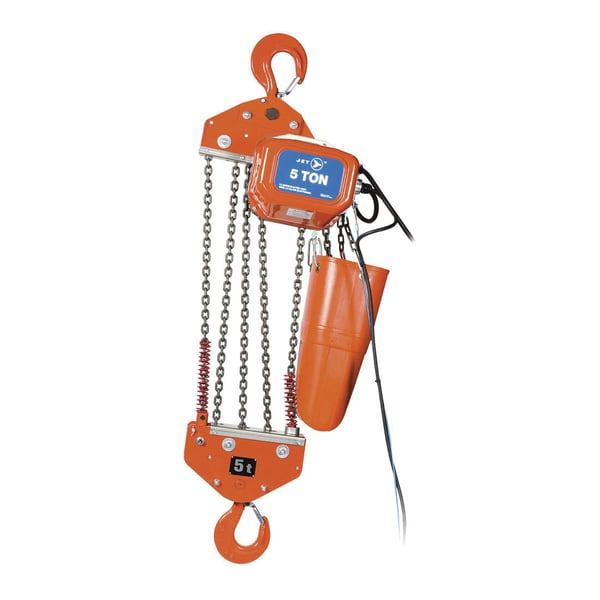

JET 107206 FA Series Heavy Duty Electric Chain Hoist, 5 ton Load, 15 ft H Lifting, 1.2 hp Power Rating, 115/230 V AC


Description

JET Electric Chain Hoist, Heavy Duty, Series: FA Series, 5 ton, 15 ft Lifting Height, 2 fpm Lift Speed, 35.43 in Minimum Between Hooks, 1.02 in Hook Opening, 24 V AC 2-Button Control, DC Electromagnetic Brake, 1.2 hp, 115/230 V AC, 10.5/13 A, 35.43 in Headroom, 268 lb

Specifications

Amperage Rating 10.5/13 A
Brake Type DC Electromagnetic
Control Type 24 VAC 2-Button
Headroom 35.43 in
Hook Opening 1.02 in
Lift Speed 2 fpm
Lifting Height 15 ft
Load Capacity 5 ton
Minimum Between Hooks 35.43 in
Power Rating 1.2 hp
Series FA Series
Type Heavy Duty
Voltage Rating 115/230 V AC
Weight 268 lb

Warranty: 1 year

Country of Origin: Japan

Standards and Approvals: ASME B30.16, CSA Certified, OSHA Compliant

Features

  • Chain is heat treated, case hardened low wear chain surpassing ISO class T
  • All models complete with chain collector bucket
  • Reliable electro-magnetic DC brake engages automatically when power is cut-off
  • 2-button pendant control automatically returns to off mode when either button is released
  • 24 V pendant control for operator safety in damp or humid conditions
  • Strain relief cable protects electrical connections
  • Top and bottom safety hooks designed to bend slowly to warn of overloads
  • Upper and lower limit switches protect hoist from damage if load or chain stop contacts body
  • Gear train and electrical components completely sealed for use outdoors (cover recommended)
  • Modular construction of motor, gear train and brake assembly allows for quick and easy maintenance
  • Single phase hoists equipped with automatic overload protection preset to 110% of rated capacity
