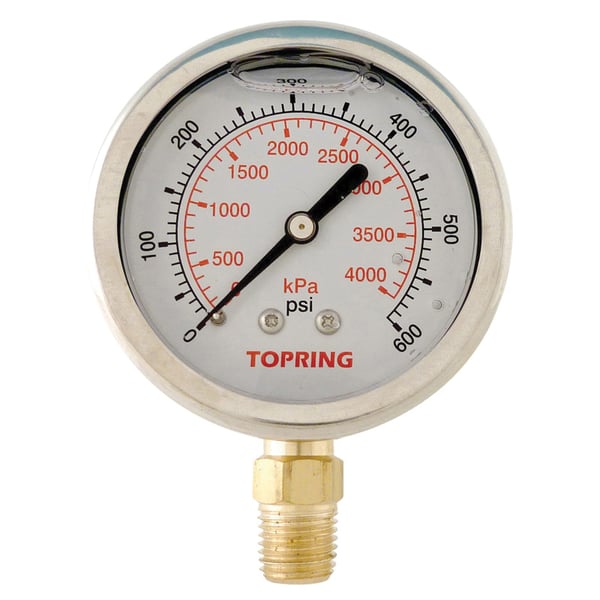

TOPRING 55.643 S55 Standard Liquid Pressure Gauge With Brass Internal, 0 to 600 psi Pressure, 1/4 in NPT Connection, 2-1/2 in Dia Dial, +/-1.6 % Accuracy, Glycerin Liquid Filled
TOPRING 55.643 S55 Standard Liquid Pressure Gauge With Brass Internal, 0 to 600 psi Pressure, 1/4 in NPT Connection, 2-1/2 in Dia Dial, +/-1.6 % Accuracy, Glycerin Liquid Filled
SKU: YDR113
Manufacturer Part Number: 55.643
UPC: 774679556433
Brand: TOPRING
Description
TOPRING Liquid Pressure Gauge, Standard, Series: S55, 0 to 600 psi Pressure Range, 1/4 in NPT Connection Size, 2-1/2 in Dial Diameter, +/-1.6 % Accuracy, Glycerin Liquid Filled, -18 to 60 deg C, Lower Mounting, 304 Stainless Steel
Working pressure should be limited to 60% of the dial maximum pressure. Where no sharp fluctuations occur, it should be limited to 90% of the dial maximum pressure.
Specifications
| Accuracy | +/-1.6 % |
| Connection Size | 1/4 in NPT |
| Dial Diameter | 2-1/2 in |
| Liquid Filled | Glycerin |
| Material | 304 Stainless Steel |
| Mounting Type | Lower |
| Pressure Range | 0 to 600 psi |
| Series | S55 |
| Temperature Rating | -18 to 60 deg C |
| Type | Standard |
Country of Origin: China
Application:
Pneumatic and Hydraulic Systems, Air Tools, Hydraulic Presses, Air Compressors and Machine Tool Applications
Features
- Acrylic lens
- Phosphor bronze drone tube
- Movement, Polished brass surface
- Brass fitting
- Reading accuracy - (+/-)1.6% full scale
- Graduation, PSI in black and kPa in red
