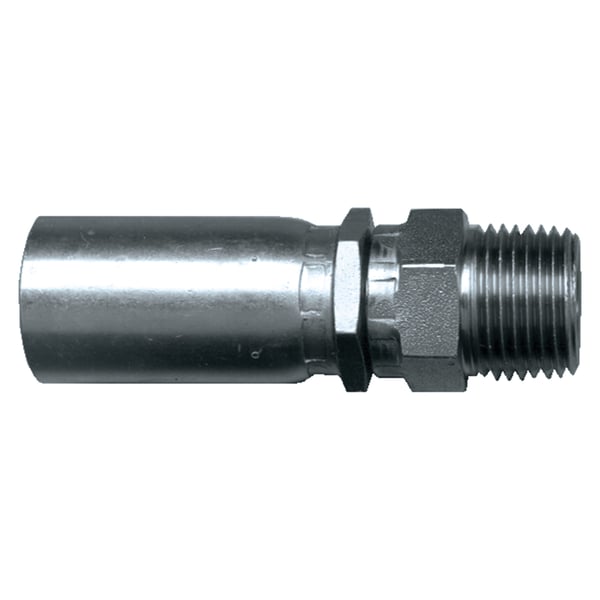

Accutek® SC625SW-12E 1-Piece Hydraulic Crimp Hose End, 3/4 in Hose, 3/4 in Connection, Hose x MNPT Swivel End Style, 3120 psi Pressure, Steel, Import


Description

Accutek® Hydraulic Crimp Hose End, 1-Piece, Series: SC625SW, 3/4 in Hose, 3/4 in Connection, Hose x MNPT Swivel End Style, 4.196 in Length, 3120 psi Pressure, -67 to 250 deg F, Steel, 1.41 in W x 1.41 in H Dimensions, Import

Specifications

Connection Size 3/4 in
Dimensions 1.41 in W x 1.41 in H
Domestic/Import Import
End Style Hose x MNPT Swivel
Hose Size 3/4 in
Length 4.196 in
Material Steel
Pressure Rating 3120 psi
Series SC625SW
Temperature Rating -67 to 250 deg F
Type 1-Piece

Warranty: 1 year

Country of Origin: China

Application:
Automotive, Hydraulic, Industrial, Trailer and Truck Applications

Features

  • Fairview hydraulic compression hose crimp ends are equivalent to the weatherhead U series for use with SAE R1,R2,T1SN,T2SN,R17 and R16 (non-low temperature) hoses
