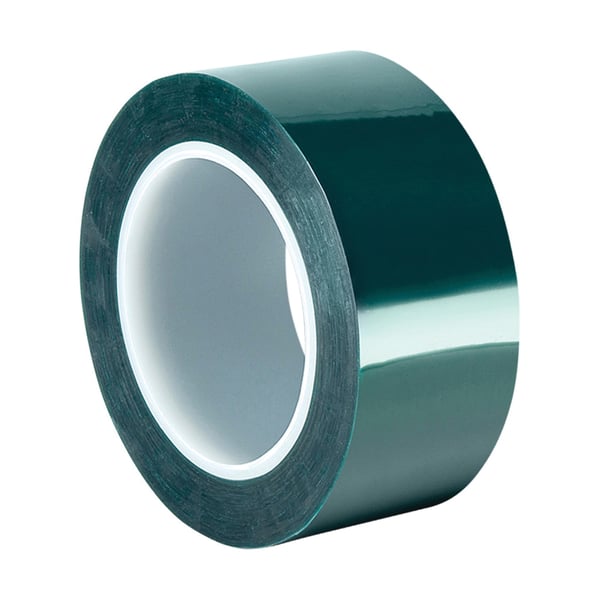

3M™ M-5.625" X 72YD M Series Powder Coating Tape, 72 yd L x 5-5/8 in W, 3.3 mil THK, Silicon Adhesive, Polyester Film Backing


Description

3M™ Powder Coating Tape, Series: M Series, 72 yd Length, 5-5/8 in Width, 3.3 mil Thickness, Green, Silicon Adhesive, Polyester Film Backing, 35 in-oz Adhesion Strength, 50 in-lb Tensile Strength, 400 deg F Maximum Operating

M-series green polyester tape is a heavy duty green polyester film with a silicone adhesive used for a variety of high temperature masking applications. Withstands up to 400 deg F baking cycles with residue-free removal, use for general purpose masking in powder coating applications. High temperature, chemical and abrasion resistance, green polyester tape works well in the surface finishing industry for e-coating, electroplating and anodizing masking applications. High tensile strength, removes cleanly in one piece without slivering, use as a flash breaker in metal bonding processes where the excess epoxy (flash) flows on to the tape. Resists shrinking, curling and edge lifting, works well in the fabrication industry to provide a good barrier of separation between dissimilar metals to prevent corrosion. Use for holding parts or vacuum bags during composite bonding operations. Ideal for splicing, tabbing and roll closing silicone treated liners or silicone coated materials. Silicone adhesive bonds to a variety of difficult surfaces with clean removal.

Specifications

Adhesion Strength 35 in-oz
Adhesive Material Silicon
Backing Material Polyester Film
Color Green
Length 72 yd
Maximum Operating Temperature 400 deg F
Series M Series
Tensile Strength 50 in-lb
Thickness 3.3 mil
Width 5-5/8 in

Country of Origin: United States

Application:
For general purpose masking in powder coating applications

Features

  • 3.5 mil THK, 2 mil green polyester film with silicone adhesive
  • Excellent thermal, chemical and abrasion resistance while maintaining flexibility
  • Withstands 400 deg F baking cycles
  • Silicone adhesive bonds to a variety of difficult surfaces with residue-free removal
  • High tensile strength, resists slivering or tearing when removed
  • Will not burn, wrinkle or shrink
  • Engineered to leave sharp, clean edges
  • Translucent backing provides easy identification and positioning
