Precision Brand® 26604 Shoulder Screw Shortening Shim, 6 mm ID x 10 mm OD, 0.5 mm THK, 302 Full Hard Stainless Steel


Description

Precision Brand® Shoulder Screw Shortening Shim, 6 mm Inside Dia, 10 mm Outside Dia, 0.5 mm Thickness, 302 Full Hard Stainless Steel, 302, RC 40-45 Hardness

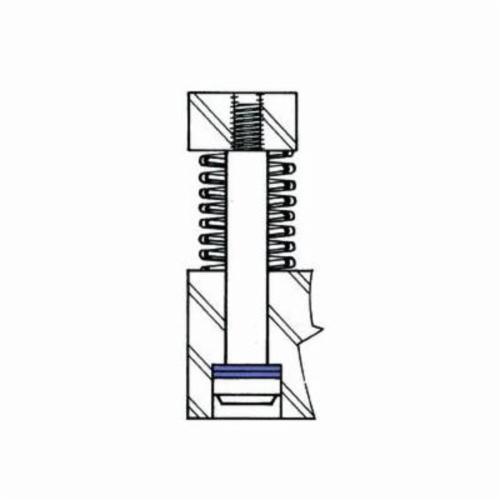

Shortening shims are precision die cut to fit with close tolerances around the shoulder screw shank to fit under the screw head. Made from a 302 full hard stainless steel.

Specifications

Hardness 40 to 45 HRC
Inside Diameter 6 mm
Material 302 Full Hard Stainless Steel
Material Grade 302
Outside Diameter 10 mm
Thickness 0.5 mm

Country of Origin: United States

Standards and Approvals: AISI-T302, SAE-30302, ASTM A-666

Features

  • Shortening shims are Precision die cut to fit with close tolerances around the shoulder screw shank to fit under the screw head
  • Fits 6 mm diameter shoulder screw
