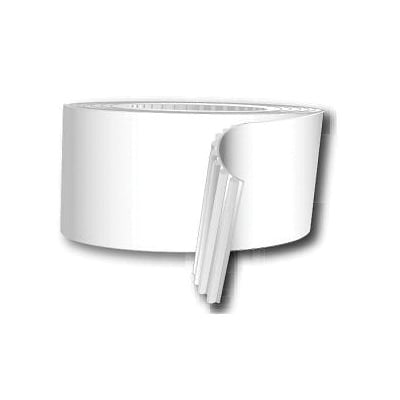

Gates® Power Transmission Synchro-Power® AT5-50-50M-LLUS Long Length Synchronous Belt, 15 Teeth, 5 mm Pitch, 50 m OAL, 50 mm W, Polyurethane


Description

Gates® Power Transmission Synchro-Power® Synchronous Belt, Long Length, Series: 7787, 15 Teeth, 5 mm Pitch, 50 m Overall Length, 50 mm Width, 23.87 mm Minimum Pulley Dia, -5 to 70 deg C, AT Tooth Profile, Polyurethane, Steel Reinforced, White

Belts are designed for a wide variety of loads, from micro positioning to high load and dynamic linear movements. Therefore this type of belt is especially fit for applications in conveyors, linear actuators, synchronous transport, assembly lines, and many more. Endless welded belts can be equipped with a wide variety of backings.

Specifications

Color White
Material Polyurethane
Minimum Pulley Diameter 23.87 mm
Number of Teeth 15
Overall Length 50 m
Pitch 5 mm
Reinforced Material Steel
Series 7787
Temperature Range -5 to 70 deg C
Tooth Profile AT
Type Long Length
Width 50 mm

Warranty: Limited

Country of Origin: United States

Standards and Approvals: FDA/USDA Approved

Application:
Vacuum Conveyors, Linear Positioning, Assembly Conveyors, Robotics, Packaging Conveying, Glass Conveyors, Incline Conveyors, Paper Transfer, Wafer Conveying, Indexing, Food, Beverage and Indexing Industries

Features

  • Can be welded endless
  • Modifications include molded profiles, tensile cords, lamination with various backings
  • Steel tensile cord for length stability
  • Polyurethane body is abrasion, chemical and wear resistant for extended life
