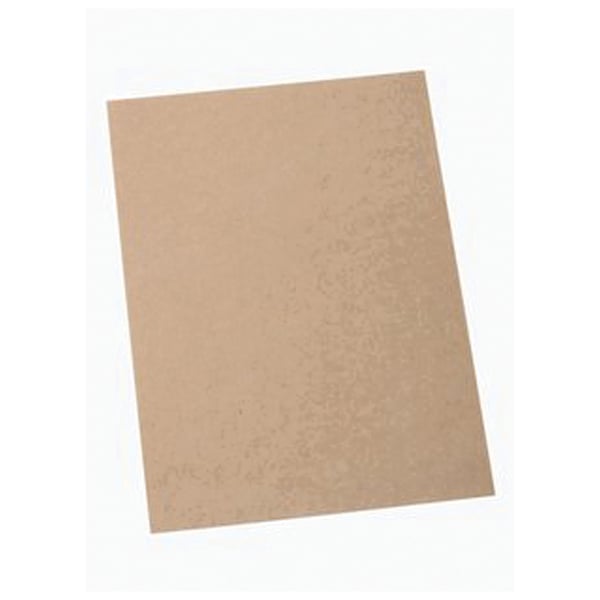

3M™ 3M 9703 2" x 2"-12 Electrically Conductive Adhesive Transfer Tape With (12) 2 in L x 2 in W Square, 6 mil THK, Pressure Sensitive Conductive Acrylic Adhesive, Polycoated Kraft Paper Backing, Clear


Description

3M™ Adhesive Transfer Tape, Electrically Conductive, Series: 9703, 6 mil Thickness, Clear, Pressure Sensitive Conductive Acrylic Adhesive, Polycoated Kraft Paper Backing, 29 in-oz Adhesion Strength, 85 deg C Maximum Operating, -40 deg C Minimum Operating, Specifications Met: ASTM D3330, ASTM E595

3M™ 9703 electrically conductive adhesive transfer tape is a pressure sensitive adhesive transfer tape with anisotropic electrical conductivity. The pressure sensitive adhesive matrix is filled with silver particles enabling interconnections through adhesive thickness (the Z-axis) between substrates. Electrically conductive adhesive transfer tapes works as a secondary grounding solution like screws and fasteners, the pressure sensitive adhesive tack properties and lack of any thermal curing make 3M™ 9703 easy to use in assembly operations. Designed for grounding, EMI shielding, attaching and bonding applications. Low outgassing acrylic adhesive for sensitive electronics, use to electrically connect and mechanically bond medium pitch flexible circuits with other flexible circuits, rigid printed circuit boards (PCB) or LCD screens. Low contact resistance and tape construction result in good EMI performance, works well to electrically connect and mechanically bond EMI/RFI shields to displays and gaskets to EMI/RFI cabinets and enclosures. Offers good adhesion to common printed circuit board substrates such as copper, gold, FR-4 epoxy, polyimide and polyester films. Also provides good adhesion to common EMI/RFI substrates such as aluminum, stainless steel and smooth gasket materials.

Specifications

Adhesion Strength 29 in-oz
Adhesive Material Pressure Sensitive Conductive Acrylic
Backing Material Polycoated Kraft Paper
Color Clear
Maximum Operating Temperature 85 deg C
Minimum Operating Temperature -40 deg C
Series 9703
Specifications Met ASTM D3330, ASTM E595
Thickness 6 mil
Type Electrically Conductive

Country of Origin: United States

Standards and Approvals: RoHS Complaint, REACH 2002/95/EC, REACH 2005/618/EC

Application:
For grounding, EMI shielding, attaching and bonding applications

Features

  • 0.05 mm THK, electrically conductive acrylic adhesive filled with conductive fillers
  • Anisotropic Z-axis electrical conductivity
  • Low outgassing acrylic adhesive
  • Low contact resistance
  • Thermal curing not required
  • Can eliminate the need for secondary grounding solutions like screws and fasteners
  • Repositionable and reworkable
  • Can be applied as die cut parts or in roll form
  • Easy-to-use in assembly operations
