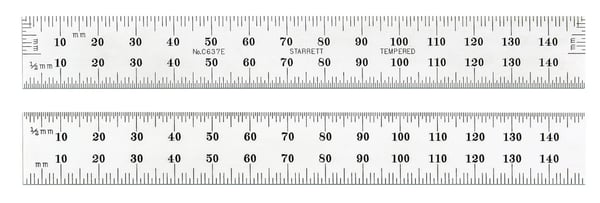

Starrett® C637E-150 Precision Rule, Metric Measuring System, Graduations 37E - mm and 1/2mm Both Sides; mm on Both Ends One Side, Tempered Spring Steel, Satin Chrome


Description

Starrett® Precision Rule, 150 mm Length, 19 mm Width, 1.2 mm Thickness, Measuring System: Metric, Graduations: 37E - mm and 1/2mm Both Sides; mm on Both Ends One Side, Tempered Spring Steel, Satin Chrome

The Starrett 150mm Full-Flexible Steel Rule with Millimeter Graduation features a satin chrome finish. Graduations at mm and 1/2mm on both sides; mm on both ends on one side. Includes end graduations. 150mm, No. 37 Grad, End Graduations graduations.

Specifications

Finish Satin Chrome
Graduations 37E - mm and 1/2mm Both Sides; mm on Both Ends One Side
Length 150 mm
Material Tempered Spring Steel
Measuring System Metric
Thickness 1.2 mm
Width 19 mm

Country of Origin: United States

Features

  • Machine-divided rules provide uniformity of line width and depth
  • Graduations are generally deeper than cheaper, photoengraved rules and will last longer
  • The numbering size and style is distinctive and more readable than ordinary rules
  • Quick reading figures are furnished with finer graduations for easier counting
  • No-glare satin chrome finish for easier reading and rust resistance
  • Ground square on both ends provides better efficiency through the ability to read from either end on all edges
  • Advanced, staggered graduations when reading lines, it is much easier to count lines of differing lengths than those that resemble a comb
  • Graduations are staggered in a height pattern that makes reading easy
  • Single row of millimeter figures
  • End graduations are useful for measuring depths, widths of shoulders, recesses, grooves, etc
  • They are graduated in 32nds of an in or millimeters on both ends of one side as shown at the right
