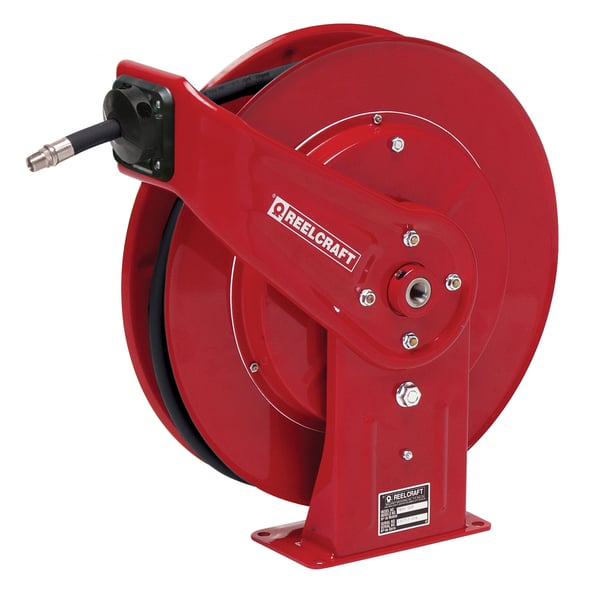

Reelcraft® 7650 OHP 7000 Heavy Duty High Pressure Hose Reel With Hose, 3/8 in ID x 0.73 in OD x 50 ft L Hose, 4800 psi Pressure, 19-3/4 in Dia x 3-7/8 in W Reel, Domestic


Description

Reelcraft® Hose Reel, Heavy Duty High Pressure, Series: 7000, 3/8 in ID x 0.73 in OD x 50 ft L Hose, 4800 psi Pressure, 19-3/4 in Reel Diameter, 3-7/8 in Reel Width, Retractable Spring Drive, Bench/Ceiling/Floor/Truck/Wall Mounting, Nickel Plated Steel Swivel, 20-1/4 in H x 7 in W x 19-3/4 in D, Reinforced Stainless Steel, Powder Coated, Red, Domestic

Series 7000 is very robust and ideal for the most demanding applications. The reel's base and guide arm are formed from high grade steel engineered with structural forms and gussets to yield the greatest amount of strength. The standard low pressure hose is for air or water service only. The basic reel without hose can be used for air, water or oil. Guide arm adjusts to three positions.

Specifications

Color Red
Dimensions 20-1/4 in H x 7 in W x 19-3/4 in D
Domestic/Import Domestic
Drive Type Retractable Spring
Finish Powder Coated
Hose Capacity 3/8 in ID x 0.73 in OD x 50 ft L
Material Reinforced Stainless Steel
Mounting Type Bench/Ceiling/Floor/Truck/Wall
Pressure Rating 4800 psi
Reel Diameter 19-3/4 in
Reel Width 3-7/8 in
Series 7000
Swivel Material Nickel Plated Steel
Type Heavy Duty High Pressure

Country of Origin: United States

Standards and Approvals: PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Application:
Grease, Industrial, Tire Stores, Automotive Service Centers, Agriculture, Transmission Shops, Farm and Ranch, Fleet Maintenance Facilities, Service Trucks, Pneumatic tools, Wash Down, Aircraft Maintenance

Features

  • Steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
  • Full flow stress free swivel design - full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life, the hose is plumbed into the base to eliminate the risk of undue stress on the swivel
  • Declutching arbor virtually eliminates possibility of spring damage due to reverse winding, only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
  • Individually powder coated components offer the maximum protection from premature corrosion 1/2 in female NPTF inlet
  • 1/4 in male NPTF outlet
