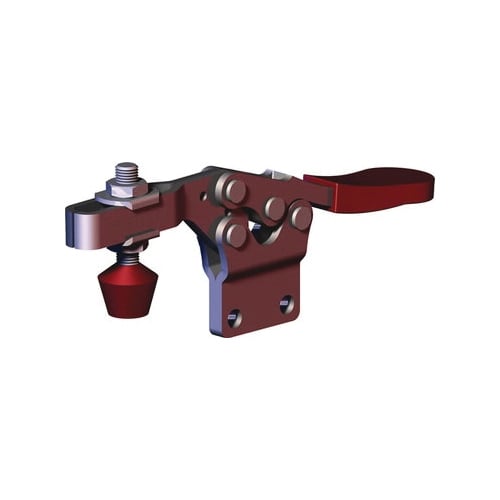

DESTACO 225-UB Horizontal Hold-Down Standard Toggle Locking Clamp, Steel, 500 lb, 1.56 in, M8x1.25


Description

DESTACO Toggle Locking Clamp, Horizontal Hold-Down Standard, Series: 225 Series, 500 lb Holding, 1.56 in Height Under Arm, 2.13 in Overall Height, 6.91 in Overall Length, M8x1.25 Thread, Straight Handle, U-Bar Bar, 92 deg Bar Opening, Straight Base, 1 x 0.87 in Mounting Centers, Steel, Electro Plated Zinc

Specifications

Bar Opening 92 deg
Bar Type U-Bar
Base Type Straight
Finish Electro Plated Zinc
Handle Type Straight
Height Under Arm 1.56 in
Holding Capacity 500 lb
Material Steel
Mounting Centers 1 x 0.87 in
Overall Height 2.13 in
Overall Length 6.91 in
Series 225 Series
Thread Size M8x1.25
Type Horizontal Hold-Down Standard

Includes: 225208-M Neoprene Spindle Assembly and 507107 Flanged Washer

Country of Origin: United States

Application:
Assembly, Checking Fixtures, Closures and Woodworking

Features

  • Minimum overhead clearance is required for this low profile clamp
