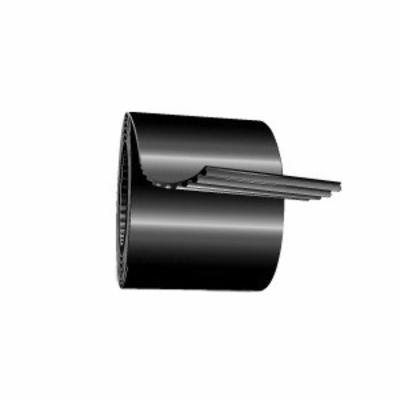

Gates® Power Transmission PowerGrip® HTD® LL14M55 Long Length Synchronous Belt, 55 mm W, 392 ft OAL, 14 mm Pitch, Neoprene


Description

Gates® Power Transmission PowerGrip® HTD® Synchronous Belt, Long Length, Series: 9308, 14 mm Pitch, 392 ft Overall Length, 55 mm Width, -65 to 185 deg F, Curved Tooth Profile, Neoprene, Fiberglass Reinforced Material

PowerGrip® HTD® belts have a larger, more robust tooth profile for increased capacity, as compared to timing belts.

Specifications

Material Neoprene
Overall Length 392 ft
Pitch 14 mm
Reinforced Material Fiberglass
Series 9308
Temperature Range -65 to 185 deg F
Tooth Profile Curved
Type Long Length
Width 55 mm

Country of Origin: Belgium

Standards and Approvals: RMA Standard

Application:
For linear movement, positioning and conveying applications

Features

  • Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
  • Nylon tooth facing provides a durable wear surface for long service life
  • Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
  • Neoprene body provides protection against grime, grease, oil and moisture
