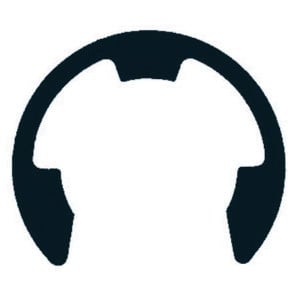

Dynaline 22870 External E-Retainer Ring, 1 in Dia Shaft, Spring Steel, Phosphate/Oil


Description

Dynaline External E-Retainer Ring, Measurement System: Imperial, 1 in Shaft Diameter, Spring Steel, Phosphate/Oil, Fits Groove Diameter: 0.84 in, 1-1/2 in OD, 0.05 in Thickness

The universally used radially assembled circlip for shafts. The groove is gripped by 3 tabs. Applications in vehicle construction, optical and electronic industry and light mechanical industry. Cross reference to 1000, 1500, 5133, MS-16633 series. SAE 1060-1090 Spring steel. Phosphate & oil finish.

Specifications

Finish Phosphate/Oil
Fits Groove Diameter 0.84 in
Material Spring Steel
Measurement System Imperial
Outside Diameter 1-1/2 in
Shaft Diameter 1 in
Thickness 0.05 in

Country of Origin: Canada

Standards and Approvals: SAE 1060-1090

Application:
Vehicle Construction, Optical, Electronic Industry and Light Mechanical Industry
