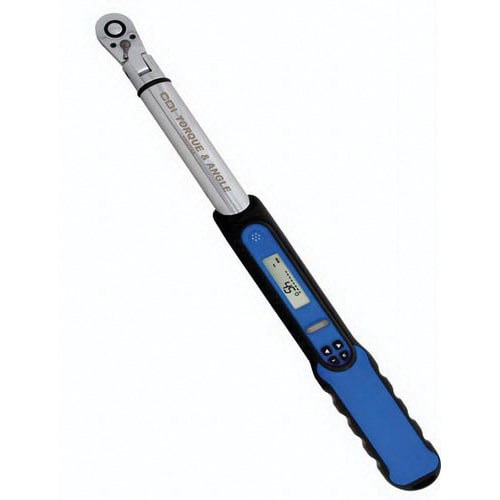

CDI Torque Products® TORQUE & ANGLE™ 1002TAA-CDI Electronic Torque and Angle Wrench, 3/8 in Drive, 10 to 100 ft-lb, Flexible/Ratcheting Head, 0.1 ft-lb Graduation, 17 in OAL, ASME B107.28-2005


Description

CDI Torque Products® TORQUE & ANGLE™ Electronic Torque and Angle Wrench, 3/8 in Drive, 10 to 100 ft-lb Torque, Flexible/Ratcheting Head, Graduations: 0.1 ft-lb, 17 in Overall Length, CW/CCW Rotation, +/-2%, +/-3% Accuracy, LED Display, (3) Yellow/Green/Red LED Light/Audible Buzzer Indicator, (2) CR123 Lithium Batteries Power Source, Specifications Met: ASME B107.28-2005, Non-Slip/Cushion Grip Handle, Rubber

Specifications

Accuracy +/-2%, +/-3%
Display Type LED
Drive Size 3/8 in
Graduations 0.1 ft-lb
Handle Type Non-Slip/Cushion Grip
Head Type Flexible/Ratcheting
Indicator Type (3) Yellow/Green/Red LED Light/Audible Buzzer
Material Rubber
Overall Length 17 in
Power Source (2) CR123 Lithium Batteries
Rotation Type CW/CCW
Specifications Met ASME B107.28-2005
Torque Range 10 to 100 ft-lb

Includes: Blow Molded Box

Warranty: Limited

Country of Origin: United States

Standards and Approvals: NIST Certified

Features

  • Digital torque measurement and digital angle measurement in one convenient package
  • No maintenance, just change batteries at 80 hr
  • Ergonomic non-slip cushion grip
  • Gyro chip senses 360 deg of movement and is accurate to within +/-3.8 deg
  • Long battery life, uses (2) CR123 lithium batteries
  • Features 3-units of torque, ft-lb, in-lb and Nm as well as the angle mode
  • As the angle mode is a separate function, the wrench can also be used as a stand alone digital torque wrench
  • 15% flex ratchet head
  • Convenient, push button socket release ratchet head
  • 3-step LED visual signal system, yellow light for approaching target torque, green light for target torque reached and red light for over torque indicator
  • NIST traceable certificate of calibration included
