Starrett® 445MDZ-150RL Mechanical Depth Micrometer, 0 to 150 mm, Graduations: 0.01 mm, Satin Chrome


Description

Starrett® Depth Micrometer, Mechanical, Series: 445M, 0 to 150 mm, +/-0.0025 mm Mic Head, +/-0.005 mm Rods Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Ratchet Thimble, Satin Chrome

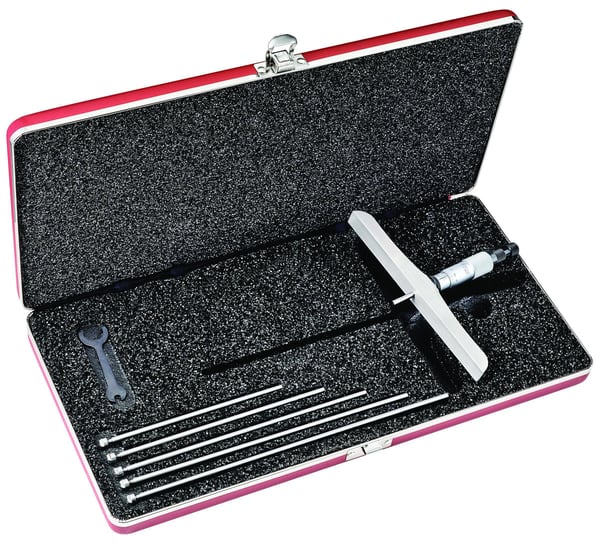

The Starrett 440, 440M, 445, 445M Series Depth Micrometer features a combination ratchet and speeder, ring-type locknut, ratchet stop and locknut. 0-150mm Range, 150mm Base, 6 Rods, Ratchet Stop, Lock Nut, Case.

Specifications

Accuracy +/-0.0025 mm Mic Head, +/-0.005 mm Rods
Finish Satin Chrome
Graduations 0.01 mm
Measuring Range 0 to 150 mm
Resolution 0.01 mm
Series 445M
Thimble Type Ratchet
Type Mechanical

Includes: Lock Nut Kit, 0.123 x 0.155 x 151 Pin, 0.132 x 0.156 x 0.094 x 0.012 x 2-1/2 Spring, Binder Ring, Adjusting Shell, Barrel Spring, 0.375-52 Nut, 0.291-40 SCR. Spindle, 13033-M Outside Shell, Shell Cap, Ratchet Assembly, #2-64 Ratchet Nut, Cap Assembly, 0.066D x 0.156L Ratchet Pin, 0.041 x 0.061 x 0.188 x 0.010 x 6 Spring, #2-64 Slot x 0.204 Long Screw, 0-25 mm Rod Assembly, 25-50 mm Rod Assembly, 50-75 mm Rod Assembly, 75-100 mm Rod Assembly, 100-125 mm Rod Assembly, 125-150 mm Rod Assembly, #3 Wrench, 0.125-40 Replacement Rod Nut and Steel/Vinyl Case Only

Country of Origin: United States

Standards and Approvals: PROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm

Features

  • The depths of holes, slots, shoulders and projections can be measured with these fine tools
  • 6 in (150mm) base and 5/32 in (4mm) diameter measuring rods
  • Combination ratchet and speeder for uniform pressure and quicker adjustment
  • Ring-type knurled lock nut for quick and sure locking
  • Satin chrome reading surface is glare free and resists rust
