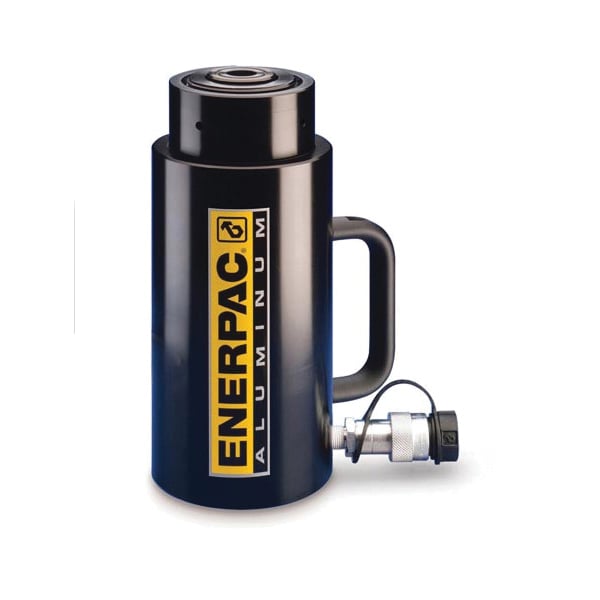

Enerpac® RACL206 Lock Nut Single Acting Solid Plunger Spring Return Hydraulic Cylinder, 24.2 ton Advance Capacity, 2.48 in Bore, 5.91 in L Stroke, 12.76 in Retract, 1.58 in Dia Rod, 10000 psi Pressure
Enerpac® RACL206 Lock Nut Single Acting Solid Plunger Spring Return Hydraulic Cylinder, 24.2 ton Advance Capacity, 2.48 in Bore, 5.91 in L Stroke, 12.76 in Retract, 1.58 in Dia Rod, 10000 psi Pressure
SKU: TNT748
Manufacturer Part Number: RACL206
UPC: 662005379163
Brand: Enerpac®
Description
Specifications
| Bore Size | 2.48 in |
| Capacity | 24.2 ton Advance |
| Dimensions | 3.35 in OD x 18.67 in H |
| Housing Material | Aluminum |
| Mounting Type | Base |
| Port Size | 3/8-18 NPTF |
| Pressure Rating | 10000 psi |
| Retract | 12.76 in |
| Rod Diameter | 1.58 in |
| Series | RACL Series |
| Stroke Length | 5.91 in |
| Type | Lock Nut Single Acting Solid Plunger Spring Return |
Includes: (1) CR400 High Flow Female Half Hydraulic Coupler, Dust Cap and Handle
Warranty: Limited
Country of Origin: India
Standards and Approvals: ASME B-30.1, EAR99, ETC Certified
Features
- Aluminum lock nut provides mechanical load holding for extended periods
- Hardened steel stop ring increases cylinder life and resistance to side loads of up to 5%
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Composite bearings increase cylinder life and side load resistance
- Steel base plate and saddle for protection against load induced damage
- Integral stop ring prevents plunger over travel and is capable of withstanding the full cylinder capacity
- High strength return spring for rapid cylinder retraction
