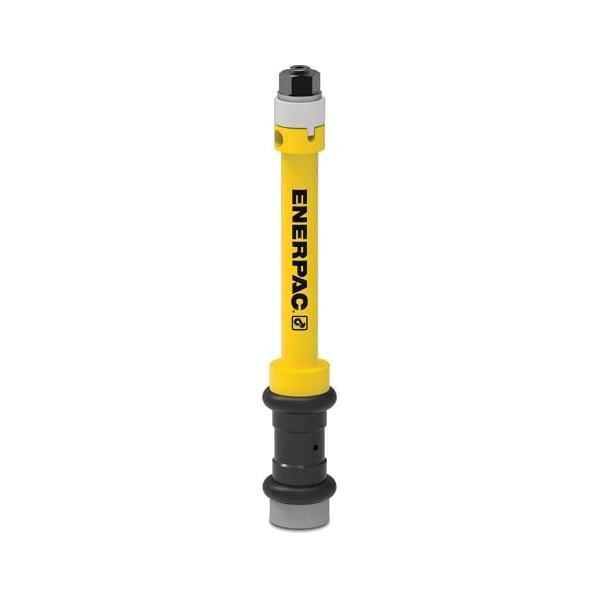

Enerpac® MITT2A Combination Piping Isolation and Pressure Test Tool, 2 in Dia Pipe Nominal, 4500 psi, 1/4 in FNPT Pressure Port, 1/4 in Stud/Nut/Washer, <0.75 gal Water Capacity Per Test, SCH 5, SCH 10, SCH 40/STD, SCH XS/80 Applicable Pipe Schedule


Description

Enerpac® Combination Piping Isolation and Pressure Test Tool, Series: MITT Series, Specifications: 2 in Dia Pipe Nominal, 4500 psi, 1/4 in FNPT Pressure Port, 1/4 in Stud/Nut/Washer, <0.75 gal Water Capacity Per Test, SCH 5, SCH 10, SCH 40/STD, SCH XS/80 Applicable Pipe Schedule, For Use With: MP350 MP Series 2-Speed Multi-Fluid Hand Pump and MP10T Reservoir Kit, 1.8 in Dia x 14 in L

MITT Series tools obsolete traditional pipe cleaning and system hydro testing methods for maintenance and construction operations. Improve operator safety and reduce system downtime by eliminating cleaning requirements and limiting test pressure volume. The MITT series tools improve safety by limiting the test pressure volume and reduce downtime by eliminating cleaning requirements. Key benefits of the MITT series tools include significantly reduce maintenance project timelines, safely perform welding on hydrocarbon lines with the peace of mind of a positive pressurized hydrostatic isolation, achieve significant reduction in wastewater (<1/4 gal of water required for a 24 in test), patent pending.

Specifications

Dimensions 1.8 in Dia x 14 in L
Series MITT Series
Specifications 2 in Dia Pipe Nominal, 4500 psi, 1/4 in FNPT Pressure Port, 1/4 in Stud/Nut/Washer, <0.75 gal Water Capacity Per Test, SCH 5, SCH 10, SCH 40/STD, SCH XS/80 Applicable Pipe Schedule
Suitable For Use With MP350 MP Series 2-Speed Multi-Fluid Hand Pump and MP10T Reservoir Kit

Warranty: Limited

Standards and Approvals: ASME PCC-2 Type IV, ETC Certified

Features

  • Combination isolation and test tool assures vapor-free isolation for hot work and high pressure capability between seals for testing welds with one tool
  • Multi-schedule capability - up to SCH 6 covered per tool, 40 tools cover 154 pipe diameter/schedule combinations
  • Lightweight, slim and versatile design - no crane required, able to mount in elbows and tees, able to test mismatched schedules
  • High pressure capability - test welds with relative ease up to 4500 psi
  • Hydrodynamic capability for heat treating
