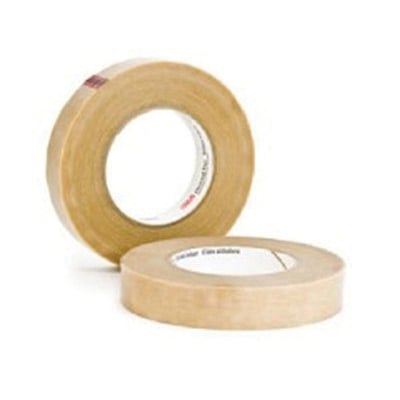

3M™ 3M 44HT 1.625" x 90yd Electrical Tape, 90 yd L x 1-5/8 in W, 5.5 mil THK, Pressure Sensitive Thermosetting Rubber Adhesive, Polyester Film/Polyester Web Backing, Tan


Description

3M™ Electrical Tape, Series: 44HT, 90 yd Length, 1-5/8 in Width, 5.5 mil Thickness, Tan, Pressure Sensitive Thermosetting Rubber Adhesive, Polyester Film/Polyester Web Backing, 80 in-oz Adhesion Strength, 5500 V Dielectric Strength, 40 in-lb Tensile Strength, 266 deg F Maximum Operating, Specifications Met: UL File No. E17385, Guide OANZ2, ASTM D1000, CSA Certified

3M™ 44HT composite film electrical tape is a strong, conformable polyester web reinforced film with a high tack thermosetting rubber adhesive used for electrical insulating applications requiring greater puncture resistance and quick holding power. Excellent for general purpose insulation, anchoring and banding in motors and transformers where dimensional restrictions limit insulation build-up requiring a thin insulation tape. Thermoset rubber adhesive resists many chemicals and common industry varnish solvents, use for stick wound coils/transformers and in bobbin wound coils for banding, anchoring and insulating. UL recognized, 130 deg C/266 deg F temperature rating, ideal for protecting start wires, leads, terminal strips, insulation paper and end turns and connections in motors and transformers. Reinforced polyester film also works well as a slot cell edging tape for transformers and motors, providing reinforcement and strengthening of edges of slot insulation. Thermoset adhesive is aggressive and suited for adhering to oily magnet wire without corrosion.

Specifications

Adhesion Strength 80 in-oz
Adhesive Material Pressure Sensitive Thermosetting Rubber
Backing Material Polyester Film/Polyester Web
Color Tan
Dielectric Strength 5500 V
Length 90 yd
Maximum Operating Temperature 266 deg F
Series 44HT
Specifications Met UL File No. E17385, Guide OANZ2, ASTM D1000, CSA Certified
Tensile Strength 40 in-lb
Thickness 5.5 mil
Width 1-5/8 in

Country of Origin: United States

Application:
For end turns and lead wire hold down in motors, and in transformers for anchoring, insulating and protecting start wires, leads, terminal strips, and insulation papers, and for holding and anchoring in stick-wound and bobbin wound coils applications

Features

  • 5 mil THK, web reinforced polyester film with a high tack rubber thermosetting adhesive
  • Provides greater puncture and abrasion resistance
  • Thermoset rubber adhesive resists many chemicals and common industry varnish solvents
  • UL Recognized, 130 deg C/266 deg F temperature rating (Class B)
  • High dielectric strength and excellent insulating properties
  • High tack adhesive for quick hold applications
  • Withstand higher temperature conditions than tapes with acetate cloth backings
  • Translucent film tape
