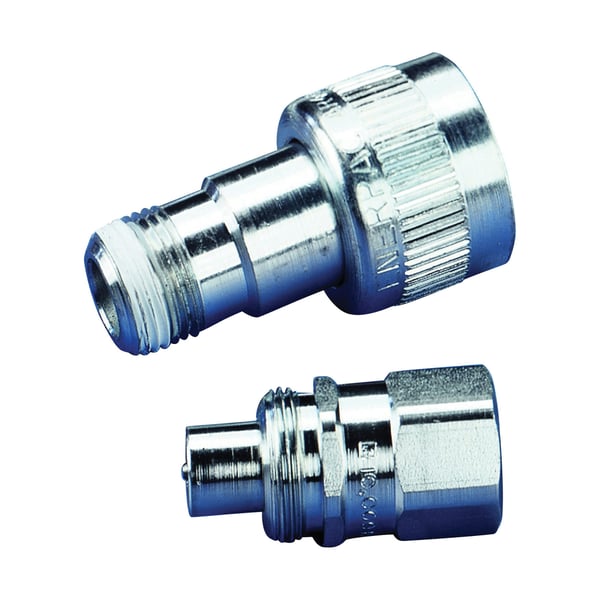

Enerpac® A-630 A Series Hydraulic Coupler, 1/4 in Dia Nominal, FNPT, Steel, Domestic


Description

Enerpac® Hydraulic Coupler, Series: A Series, 1/4 in Dia Nominal, FNPT, 0.81 in Hex, 2.61 in Length, 10000 psi, -25 to 375 deg F, Steel, Polished Chrome, Domestic

Specifications

Domestic/Import Domestic
End Style FNPT
Finish Polished Chrome
Hex Size 0.81 in
Length 2.61 in
Material Steel
Nominal Size 1/4 in Dia
Pressure Rating 10000 psi
Series A Series
Temperature Rating -25 to 375 deg F

Includes: Z-640 Female Dust Cap

Warranty: Limited

Country of Origin: United States

Application:
Industrial and Commercial

Features

  • 1/4 in regular coupler set
  • Enerpac hydraulic couplers provide quick connection of hydraulic lines
  • For use with small cylinders and hand pumps
  • 462 cu-in/min flow capacity
  • 6.1 to 40 l/min maximum oil flow
  • 0.87 in OD
