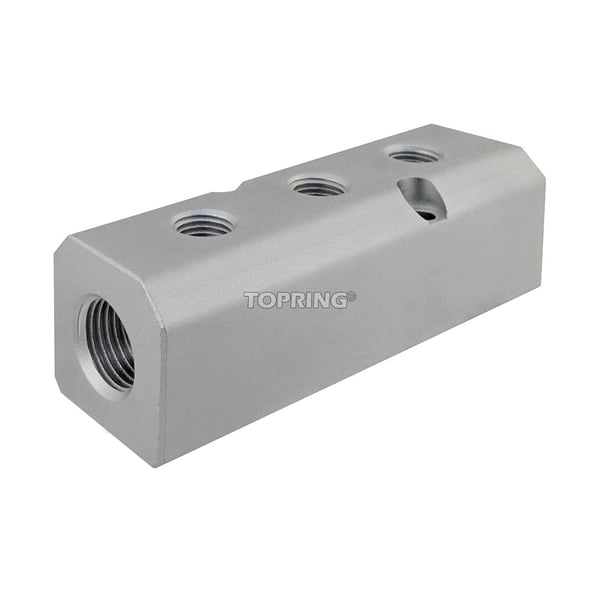

TOPRING 47.551 S47 Bar Manifold, (2) 1/2 in FNPT Inlets x (3) 1/4 in FNPT, 1/2 in FNPT Outlets, Aluminum, Import


Description

TOPRING Bar Manifold, Series: S47, 3 Outlets, 1/4 in FNPT, 1/2 in FNPT Outlet, 2 Inlets, 1/2 in FNPT Inlet, 300 psi, -20 to 70 deg C, Aluminum, 120 mm L x 40 mm W x 40 mm H, Import

Specifications

Dimensions 120 mm L x 40 mm W x 40 mm H
Domestic/Import Import
Inlet Size 1/2 in FNPT
Material Aluminum
Number of Inlets 2
Number of Outlets 3
Outlet Size 1/4 in FNPT, 1/2 in FNPT
Pressure Rating 300 psi
Series S47
Temperature Rating -20 to 70 deg C

Country of Origin: Taiwan

Application:
For air outlets, compressed air distribution systems and control panels

Features

  • Maximum operating pressure - 300 PSI
  • Operating temperature - -20 to 70 deg C
  • Compatible fluids - compressed air only
