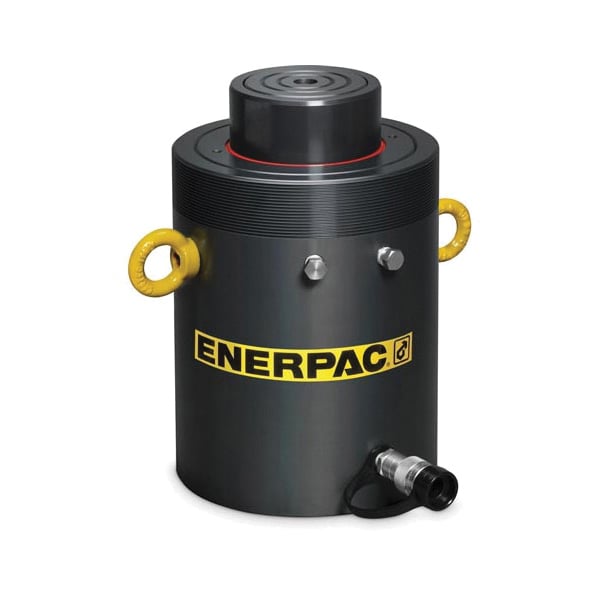

Enerpac® HCG10008 High Tonnage Single Acting Solid Plunger Hydraulic Cylinder, 1196 ton Advance Capacity, 17.32 in Bore, 7.87 in L Stroke, 23.31 in Retract, 9.8 in Dia Rod, 10150 psi Pressure


Description

Enerpac® Hydraulic Cylinder, High Tonnage Single Acting Solid Plunger, Series: HCG Series, 1196 ton Advance Capacity, 17.32 in Bore, 7.87 in Stroke Length, 23.31 in Retract, Base Mounting, 3/8-18 NPTF Port, 9.8 in Rod Diameter, 10150 psi Pressure, Steel Housing Material, 22.44 in OD x 31.18 in H

Specifications

Bore Size 17.32 in
Capacity 1196 ton Advance
Dimensions 22.44 in OD x 31.18 in H
Housing Material Steel
Mounting Type Base
Port Size 3/8-18 NPTF
Pressure Rating 10150 psi
Retract 23.31 in
Rod Diameter 9.8 in
Series HCG Series
Stroke Length 7.87 in
Type High Tonnage Single Acting Solid Plunger

Warranty: Limited

Country of Origin: United States

Standards and Approvals: EAR99, ETC Certified

Features

  • Hardened surface resists side loading and cyclic wear
  • 10% side load resistance over full stroke
  • Stop ring to prevent plunger blow out
  • Weather protected, inside and out
  • Upper and lower replaceable bearings enclose the cylinder plunger for support throughout the stroke
  • Certified lifting eyes and base mounting holes
