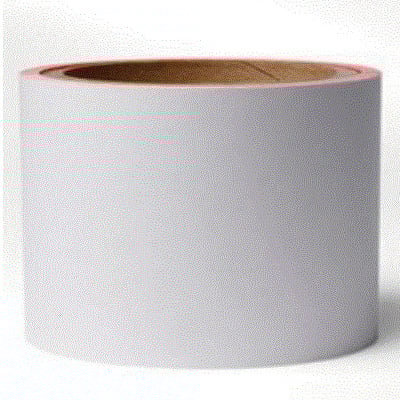

3M™ 3M 5559 10" x 36yd Ultra Thin Water Contact Indicator Tape, 36 yd L x 10 in W, 5 mil THK, Silicon Coated Polyester Film Liner, Acrylic Adhesive, Paper Backing, White


Description

3M™ Water Contact Indicator Tape, Ultra Thin, Series: 5559, 36 yd Length, 10 in Width, 5 mil Thickness, Silicon Coated Polyester Film Liner, White, Acrylic Adhesive, Paper Backing, 28 in-oz Adhesion Strength, 65 deg C Maximum Operating, -40 deg C Minimum Operating, Specifications Met: ASTM D3330, ASTM D3652

Water indicator tape is a type of liquid contact indicator used to provide a lead to the cause of a defect in electronic devices, works well in the electronics industry to provide evidence of water damage during shipment or when validating consumer warranty claims. Use ultra thin water contact indicator tape in applications with tight design tolerances or to enable slim electronics device design. The rapid change water contact indicator tape works well in applications where very quick indication is needed. Provide an easy, fast and accurate detection of water intrusion into sensitive electronic devices such as mobile handheld devices, e-books, digital cameras, laptop computers, gaming consoles and rechargeable batteries and chargers. Acrylic adhesive allows for a high bond strength to most surfaces including metals, powder coated surfaces and low surface energy plastics such as polypropylene and polyethylene.

Specifications

Adhesion Strength 28 in-oz
Adhesive Material Acrylic
Backing Material Paper
Color White
Length 36 yd
Material Type Silicon Coated Polyester Film Liner
Maximum Operating Temperature 65 deg C
Minimum Operating Temperature -40 deg C
Series 5559
Specifications Met ASTM D3330, ASTM D3652
Thickness 5 mil
Type Ultra Thin
Width 10 in

Country of Origin: United States

Application:
For use as a water contact indicator in handheld or portable electronic devices such as cell phones, PDA's, pagers, MP3 players, game players, CD players, cordless phones, 2-way radios, laptops, digital or film cameras and video cameras applications

Features

  • Offers RAPID change indication, tape permanently turns from white to red upon direct water contact
  • Highly-resistant to temperature and humidity - changing color only when edges contact liquid water
  • Acrylic adhesive provides a very high bond strength to most surfaces including hard to stick surfaces
  • Adhesive offers excellent UV, chemical and temperature resistance
  • Exceptional resistance to wash-out and bleach-out from strong oxidizers
