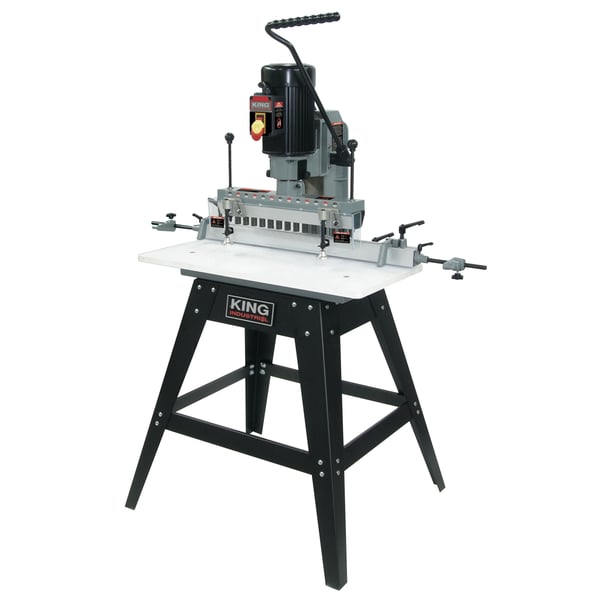

King Industrial KC-1300BM Line Boring Machine, 3500 rpm Spindle Speed, 1 Phase, 13 Spindles, 2-1/2 in D Max Working, 110 V AC, 12.6 A, 60 Hz, 1-1/2 hp Power Rating


Description

King Industrial Line Boring Machine, 3500 rpm Spindle Speed, 13 Spindles, 2-1/2 in D Max Working, 31-1/2 x 15-3/4 in Table, 110 V AC, 12.6 A, 60 Hz Frequency, 1-1/2 hp Power, 1, ON/OFF Switch, 76 in L x 28-1/2 in W x 67 in H

Specifications

Amperage Rating 12.6 A
Dimensions 76 in L x 28-1/2 in W x 67 in H
Frequency Rating 60 Hz
Maximum Working Depth 2-1/2 in
Number of Spindles 13
Phase 1
Power Rating 1-1/2 hp
Spindle Speed 3500 rpm
Switch Type ON/OFF
Table Size 31-1/2 x 15-3/4 in
Voltage Rating 110 V AC

Includes: Open Steel Stand

Warranty: 2 Years Limited

Country of Origin: Taiwan

Application:
For simultaneous multi-hole line boring or drilling and cabinet makers/shelving applications

Features

  • Powerful 1-1/2 hp, 110 VAC motor
  • 13-spindles spaced 1-1/4 in on center, allowing drilling up to 13-evenly spaced holes
  • Fully adjustable aluminum fence with work stops at each end to line up workpiece from the right or left to perform parallel boring patterns
  • Indexing pins allow correct spindle alignment for resuming line boring operations in long workpieces
