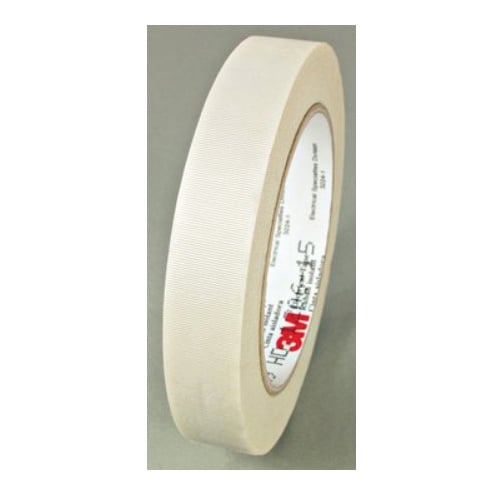

3M™ 3M 79 0.625" x 60yd 79 Series Electrical Tape, 60 yd L x 5/8 in W, 7 mil THK, Acrylic Adhesive, Glass Cloth Backing, White


Description

3M™ Electrical Tape, Series: 79 Series, 60 yd Length, 5/8 in Width, 7 mil Thickness, White, Acrylic Adhesive, Glass Cloth Backing, 30 in-oz Adhesion Strength, 600 V, 3000 V Dielectric Strength, 150 in-lb Tensile Strength, 150 deg C Maximum Operating, Specifications Met: UL Listed, Product Category OANZ2, File E17385, ASTM D1000

3M™ 79 glass cloth electrical tape is a strong, abrasion-resistant woven glass cloth tape with an electrical grade acrylic adhesive used for electrical insulating and holding applications involving heavy gauge wire and high temperatures. The acrylic adhesive resists solvents without thermosetting and provides excellent long term aging characteristics. Electrical glass cloth tape works well in the aerospace and electrical industries for applications where heavy loads and high heat cause breakdowns, use for general connection insulating and high temperature cable harnessing applications up to 311 deg F. Rated for 600 VAC dry locations, use for a variety of coil/transformer and motor applications, including outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold down, end turn and lead anchoring as well as connection insulating. Highly conformable with excellent mechanical strength, works well for electrical motor and generator binding.

Specifications

Adhesion Strength 30 in-oz
Adhesive Material Acrylic
Backing Material Glass Cloth
Color White
Dielectric Strength 3000 V
Length 60 yd
Maximum Operating Temperature 150 deg C
Series 79 Series
Specifications Met UL Listed, Product Category OANZ2, File E17385, ASTM D1000
Tensile Strength 150 in-lb
Thickness 7 mil
Voltage Rating 600 V
Width 5/8 in

Country of Origin: United States

Standards and Approvals: RoHS 2002/95/EC, EU Directive 2002/95/EC/2002/618/EC

Application:
For used in a variety of coil/transformer and motor applications, including an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold down, end turn and lead anchor and connection, banding and strapping applications

Features

  • 7 mil THK, woven glass cloth backing with an electrical grade acrylic adhesive
  • Excellent abrasion, edge tear, cut through, shrinking, rotting and burning resistance
  • UL Recognized, 155 deg C/311 deg F temperature rating
  • Solvent-resistant acrylic adhesive
  • Rated for 600 V dry applications
  • Excellent absorption of resins and varnishes
  • Printable
