Gates® Power Transmission Power Round® 9 X 200 PR Heavy Duty Round Belt, 9/16 in Dia x 200 in OAL, Premium Grade Neoprene


Description

Gates® Power Transmission Power Round® Round Belt, Heavy Duty, Series: 8819, 9/16 in Dia, 200 in Overall Length, Premium Grade Neoprene, High Strength Polyester Reinforced Material

Power Round™ belts are designed for more demanding applications and are able to steadily maintain rotating parts in your power transmission systems with virtually no maintenance or retensioning.

Specifications

Diameter 9/16 in
Material Premium Grade Neoprene
Overall Length 200 in
Reinforced Material High Strength Polyester
Series 8819
Type Heavy Duty

Country of Origin: Mexico

Standards and Approvals: ARPM/RMA IP-3-2/IP-3-3

Application:
For 1/4 turn or twisted drives, serpentine drives, power turn conveyors, line shaft conveyors and higher speed conveyor applications

Features

  • Minimal stretch for minimum take-up requirements
  • No splice for added durability

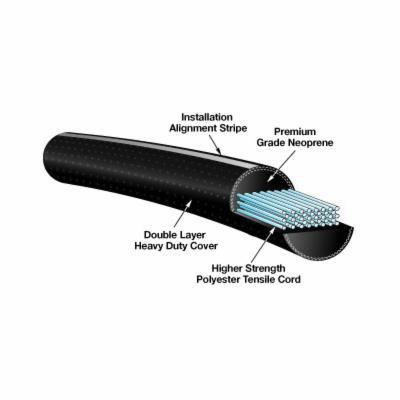

  • Installation alignment stripe runs the entire length of the belt to aid in eliminating belt twists during installation
  • The Flex-Weave® double layer heavy duty cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
  • Flex-bonded higher strength polyester tensile cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
