Gates® Power Transmission PowerGrip® HTD® 585-5M-09 Synchronous Belt, 9 mm W, 585 mm OAL, 5 mm Pitch, 117 Teeth, Neoprene


Description

Gates® Power Transmission PowerGrip® HTD® Synchronous Belt, Series: 9293, 117 Teeth, 5 mm Pitch, 585 mm Overall Length, 9 mm Width, -30 to 180 deg F, Curved Tooth Profile, Neoprene, Fiberglass Reinforced Material

PowerGrip® HTD® belts have a larger, more robust tooth profile for increased capacity, as compared to timing belts.

Specifications

Material Neoprene
Number of Teeth 117
Overall Length 585 mm
Pitch 5 mm
Reinforced Material Fiberglass
Series 9293
Temperature Range -30 to 180 deg F
Tooth Profile Curved
Width 9 mm

Country of Origin: United States

Standards and Approvals: RMA Standard

Application:
Data Storage, Hand Power Tools, Postage Handling, Food Processors, Office Machines, Centrifuges, Money Handling, Medical Diagnostic, Sewing Machines, Ticket Dispensers, Robotics, Vending Machines and Vacuum Cleaners

Features

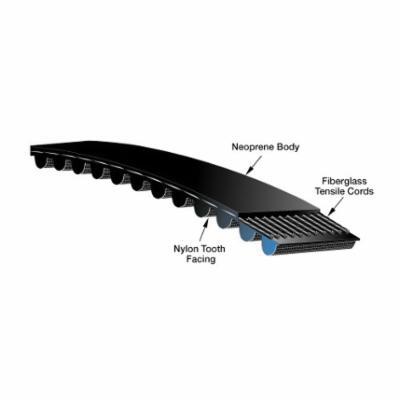

  • Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
  • Nylon tooth facing provides a durable wear surface for long service life
  • Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
  • Neoprene body provides protection against grime, grease, oil and moisture
  • Thirty percent increase in horsepower ratings, as compared to traditional timing belts
