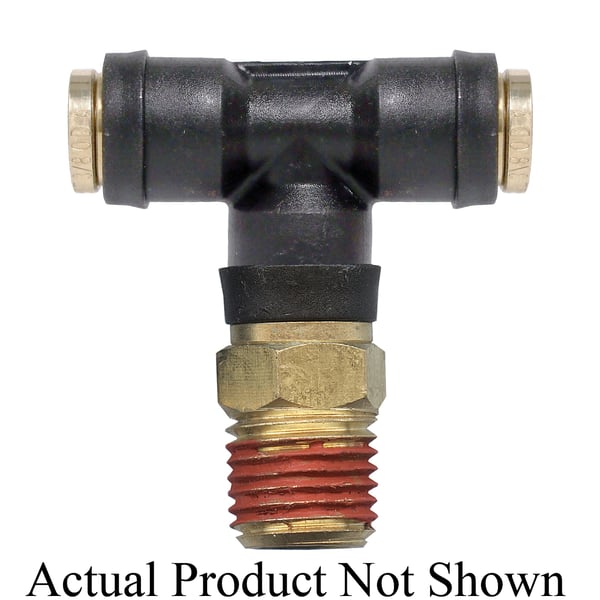

Fairview CPC1472SW-4B Composite Center Push-To-Connect DOT Air Brake Branch Tee, 1/4 in Nominal, Tube x MNPT Swivel x Tube End Style, Nylon, Import


Description

Fairview DOT Air Brake Branch Tee, Composite Center Push-To-Connect, Series: CPC1472SW, Tee Fitting/Connector, 1/4 in Nominal, Tube x MNPT Swivel x Tube End Style, 1.6 in Length, 800 psi Pressure, -67 to 248 deg F, Nylon, Import

Specifications

Domestic/Import Import
End Style Tube x MNPT Swivel x Tube
Fitting/Connector Type Tee
Length 1.6 in
Material Nylon
Nominal Size 1/4 in
Pressure Rating 800 psi
Series CPC1472SW
Temperature Rating -67 to 248 deg F
Type Composite Center Push-To-Connect

Warranty: 1 year

Country of Origin: China

Standards and Approvals: FMVSS 571.106, SAE J844

Application:
Air Brake, Air Ride Suspension, Air Tank, Cab Control, Sliders and Tire Inflation Applications

Features

  • Fairview male pipe swivel Branch Tees feature a labor saving full flow design that requires no tools
