UCAN IPA 3812 Drop-In Anchor, 1/2 in Drill, Carbon Steel, 1-1/2 in D Min Embedment


Description

UCAN Drop-In Anchor, 3/8-16, Carbon Steel, 1/2 in Drill, 1-1/2 in Minimum Embedment Depth, 5/8 in Thread Length, UNC, 1-1/2 in Overall Length, Zinc Plated

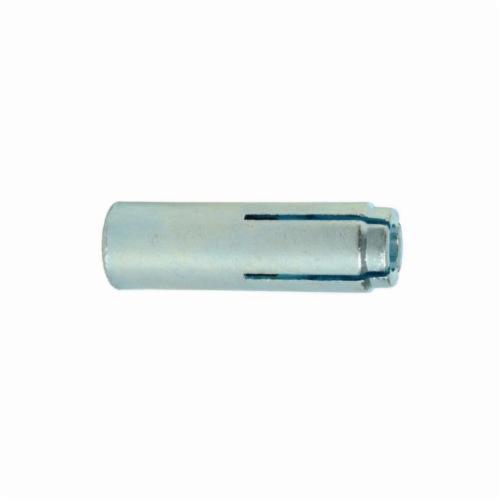

The UCAN drop-in anchor is an internally threaded anchor, which is preassembled with an internal expansion plug. These FM approved anchors are available in both carbon steel and stainless steel. The carbon steel anchor is zinc plated to extend corrosion protection. The stepped installation tool allows for correct anchor setting. The anchor is designed to deliver consistent holding power at shallow embedment.

Specifications

Drill Size 1/2 in
Finish Zinc Plated
Material Carbon Steel
Minimum Embedment Depth 1-1/2 in
Overall Length 1-1/2 in
Thread Length 5/8 in
Thread Size 3/8-16
Thread Type UNC

Standards and Approvals: FM Approved

Application:
For sprinkler systems, cable trays, machinery Installation, pipes valves support and temporary fastening for cutting/coring

Features

  • Pre-assembled design
  • Can be used in flush or countersunk applications
