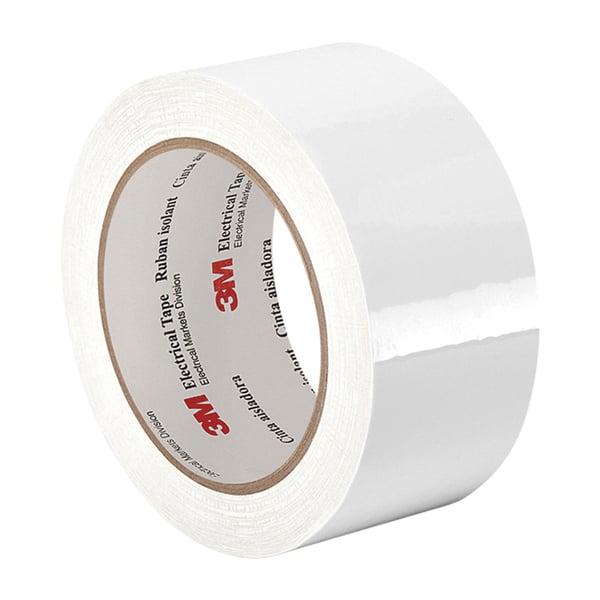

3M™ 3M 1350F-1 7" x 72yd-White 1350F-1W Flame-Retardant Electrical Tape, 72 yd L x 7 in W, 2.5 mil THK, Acrylic Adhesive, Polyester Film Backing, White


Description

3M™ Electrical Tape, Flame-Retardant, Series: 1350F-1W, 72 yd Length, 7 in Width, 2.5 mil Thickness, White, Acrylic Adhesive, Polyester Film Backing, 30 in-oz Adhesion Strength, 5500 V Dielectric Strength, 25 in-lb Tensile Strength, 266 deg F Maximum Operating, Specifications Met: UL 510, Product Category OANZ2, File E17385, ASTM D1000, CSA Certified

3M™ 1350 electrical tape is a flame retardant polyester film tape with acrylic adhesive used for general electrical insulating applications requiring a durable tape with high dielectric strength, ideal where dimensional restrictions limit insulation build-up requiring a thin insulation tape. The acrylic adhesive resists solvents without thermosetting and provides very good long term aging characteristics. Excellent flagging and solvent resistance, well suited for applications where cleaning solvents and mineral oil are present, works well as outer wrapping on capacitors and coils. Abrasion and tear-resistant, use in transformers, shaded pole motors and fractional horsepower motors for wire harness bundling, as well as anchoring and holding applications. UL recognized, 130 deg C/266 deg F temperature rating, use as a slot cell edging tape for transformers and motors, providing reinforcement and strengthening of edges of slot insulation. Meets the flame retardancy requirements of UL 510.

Specifications

Adhesion Strength 30 in-oz
Adhesive Material Acrylic
Backing Material Polyester Film
Color White
Dielectric Strength 5500 V
Length 72 yd
Maximum Operating Temperature 266 deg F
Series 1350F-1W
Specifications Met UL 510, Product Category OANZ2, File E17385, ASTM D1000, CSA Certified
Tensile Strength 25 in-lb
Thickness 2.5 mil
Type Flame-Retardant
Width 7 in

Country of Origin: Taiwan

Application:
For wrapping coils, capacitors, wire harnesses, transformers, shaded pole motors and fractional horsepower motors

Features

  • 2.5 mil THK, white 1 mil polyester film with acrylic adhesive
  • Excellent flagging and solvent resistance, well suited for applications where cleaning solvents and mineral oil are present
  • UL 510 flame retardant, UL Recognized, 130 deg C/266 deg F temperature rating (Class B)
  • Printable
  • High dielectric strength and excellent electrical insulating properties
  • Thin film resists punctures and abrasion
  • Offers good wet grab
