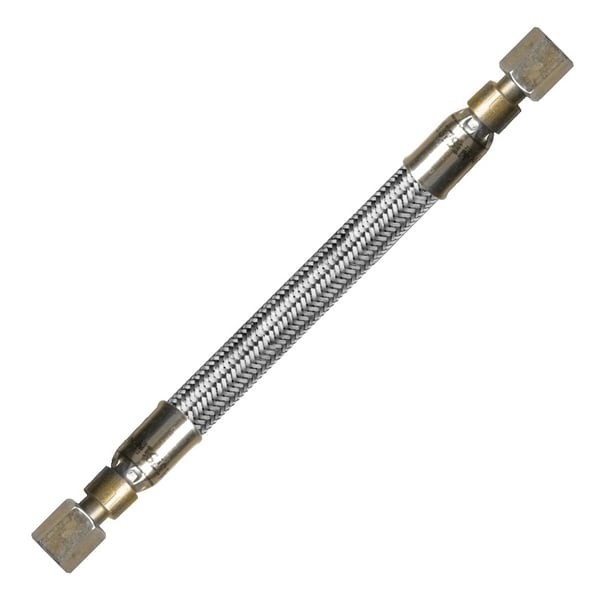

Fairview HT4C48FJ4FJ4 Hose Assembly, 1/4 in Nominal, Hose x 37 deg Female JIC Flare Swivel End Style, 48 in L, 3000 psi Working, 304 Stainless Steel/Brass/PTFE, Domestic


Description

Fairview Hose Assembly, Series: HTFJFJ, 1/4 in Nominal, Hose x 37 deg Female JIC Flare Swivel End Style, 1/4 in ID, 48 in Length, 3000 psi Working, 4 Dash, -65 to 450 deg F, 304 Stainless Steel/Brass/PTFE, Domestic

Specifications

Dash Size 4
Domestic/Import Domestic
End Style Hose x 37 deg Female JIC Flare Swivel
Inside Diameter 1/4 in
Length 48 in
Material 304 Stainless Steel/Brass/PTFE
Nominal Size 1/4 in
Series HTFJFJ
Temperature Rating -65 to 450 deg F
Working Pressure 3000 psi

Warranty: 1 year

Country of Origin: Canada

Standards and Approvals: SAE 100R14

Application:
Acids Pneumatic, Brake Lines, Chemical Lines, Chemicals, Compressor Discharge, Food Processing, Fuels, Gases, High Pressure Hydraulic Lines, Hot Oil Lines, Hydraulic Fluids, Paint Spray, Solvents, Steam, Steam Lines and Steering Lines Applications

Features

  • Fairview PTFE assemblies - female SAE are Ideal for most hard to solve hose applications
  • Vibration absorption, extra long shelf life, high temperature and pressure ranges, make PTFE hose the most versatile hose in the industry today
