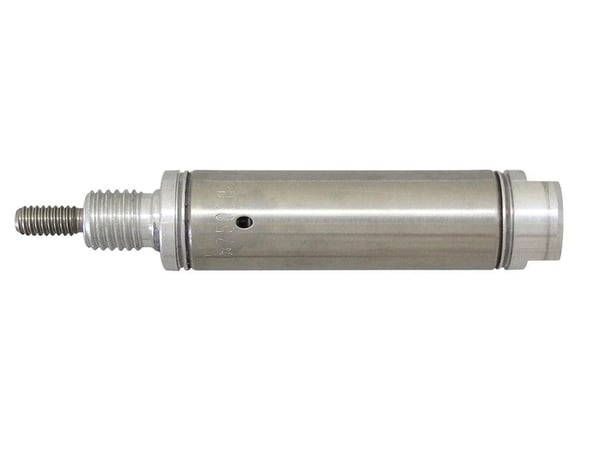

TOPRING 83.401 S83 Round Pneumatic Cylinder, 3/4 in Cylinder Bore, 1 in L Stroke, Single Acting Cylinder Action, Nose Mounting


Description

TOPRING, 83.401, Pneumatic Cylinder, Round, Series: S83, 3/4 in Cylinder Bore, 1 in Stroke Length, Single Acting Cylinder Action, 1/8 in Port, 1/4 in Rod Thread, 28 in Rod Thread Length, 250 psi Pressure, -29 to 93 deg C, Nose Mounting, Stainless Steel

Specifications

Cylinder Action Single Acting
Cylinder Bore Size 3/4 in
Material Stainless Steel
Mounting Type Nose
Port Size 1/8 in
Pressure Rating 250 psi
Rod Thread Length 28 in
Rod Thread Size 1/4 in
Series S83
Stroke Length 1 in
Temperature Rating -29 to 93 deg C
Type Round

Country of Origin: United States

Features

  • Single and double acting units available in a variety of strokes and mounting styles
  • Dimensionally interchangeable with other major brands, allowing for model and mounting retrofits
  • Pre-lubricated, all cylinders are lubricated with a special high-endurance oil
  • Pre-tested, each cylinder is tested for leakage
