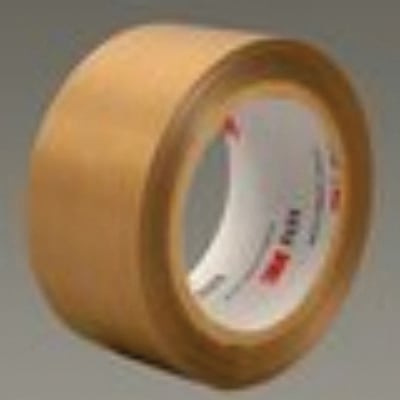

3M™ 8-5-5153 General Purpose Glass Cloth Tape, 5 yd L x 8 in W, 6.8 mil THK, Silicon Adhesive, PTFE Glass Cloth Backing, Light Brown


Description

3M™ Glass Cloth Tape, General Purpose, Series: 5153, 5 yd Length, 8 in Width, 6.8 mil Thickness, Light Brown, Silicon Adhesive, PTFE Glass Cloth Backing, 35 in-oz Adhesion Strength, 150 in-lb Tensile Strength, 400 deg F Maximum Operating, -100 deg F Minimum Operating, Elongation at Break: 0.05, Specifications Met: ASTM D3330, ASTM D3759, ASTM D3652

3M 5153 general purpose PTFE glass cloth tape is a woven glass cloth backing impregnated with PTFE, the reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE tape with the same non-stick surface properties. The thicker backing helps extend the service life over thinner versions when subjected to abrasion and wear. Silicone adhesive resists temperatures up to 500 deg F, reinforced PTFE is a durable solution to help reduce build-up on packaging and heat sealing machines, ironing and pressing equipment. High abrasion resistance, use for lining and protecting chutes, slides and troughs from severe wear. Easy release medium between surfaces where pressure, temperature changes and other factors may create a measure of adhesion, works well to protect rollers, conveyor belts, guide rails, drums and other process machinery and components from high levels of friction and vibration. Low surface resistance, use to reduce the stick of composite resins for composite and metal bonding mold release applications. Use woven glass cloth PTFE tape in the industrial industry as a barrier of separation to help alleviate wear and friction between dissimilar materials. Reinforced PTFE tape provides tear and puncture resistance, high temperature and chemical resistance, as well as non-stick surface protection from melted plastic materials; works well for bundling and harnessing cables and flexible tubes in harsh environments. General purpose PTFE glass cloth tape is resistant to most chemicals and offers high moisture resistance, use as a temporary chemical barrier in the industrial and manufacturing industries.

Specifications

Adhesion Strength 35 in-oz
Adhesive Material Silicon
Backing Material PTFE Glass Cloth
Color Light Brown
Elongation at Break 0.05
Length 5 yd
Maximum Operating Temperature 400 deg F
Minimum Operating Temperature -100 deg F
Series 5153
Specifications Met ASTM D3330, ASTM D3759, ASTM D3652
Tensile Strength 150 in-lb
Thickness 6.8 mil
Type General Purpose
Width 8 in

Country of Origin: United States

Application:
For easy release surface on packaging and heat sealing machines, ironing and pressing equipment, release surface on metal bonding tools, lining conveying chutes, troughs and ducts, covering rollers, drums, turnbars and formers on stitches, binders and other process machinery

Features

  • 8 mil THK woven glass cloth backing impregnated with PTFE and coated with a silicone adhesive
  • Provides greater tensile strength and resistance to tears, punctures and wear than typical PTFE tapes
  • Non-stick, low friction surface
  • Resists temperatures up to 500 deg F
  • Excellent chemical resistance, withstands challenging applications
  • Silicone adhesive offers high temperature performance and long aging
  • Very low moisture absorption allows the tape to perform in many humid environments
